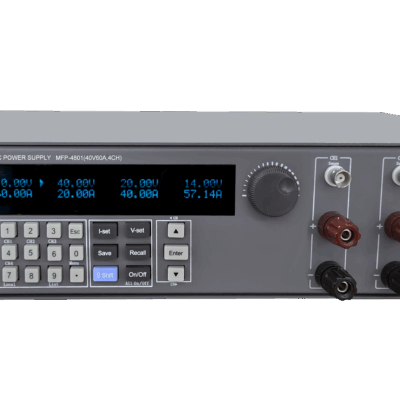

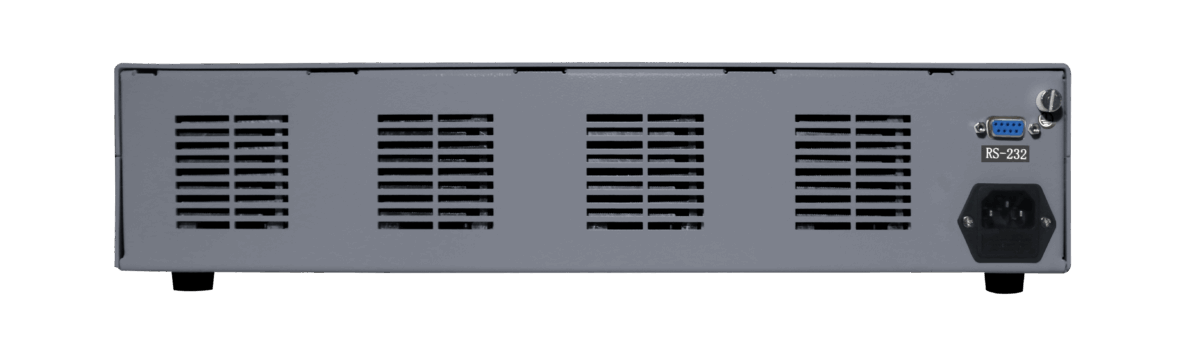

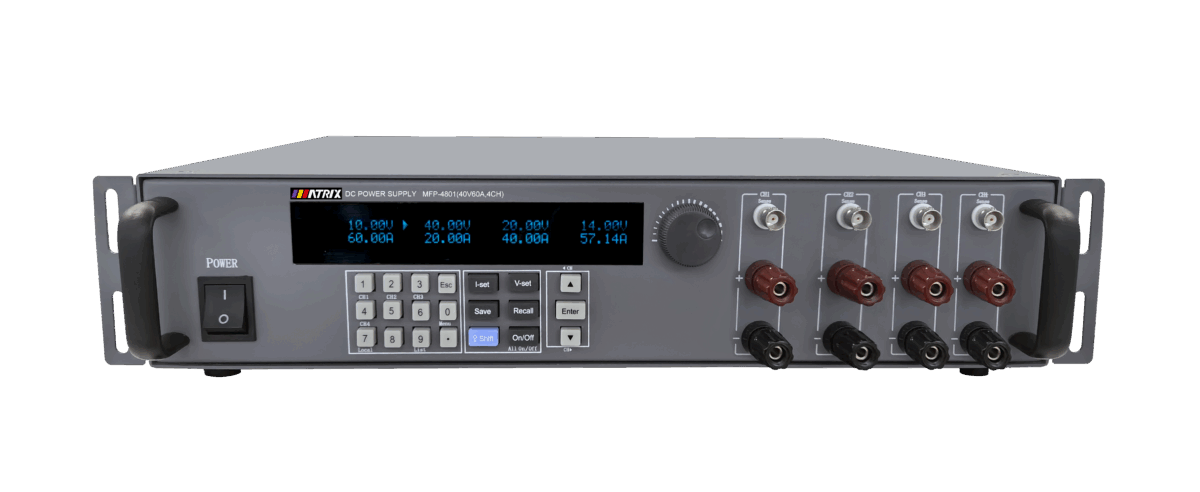

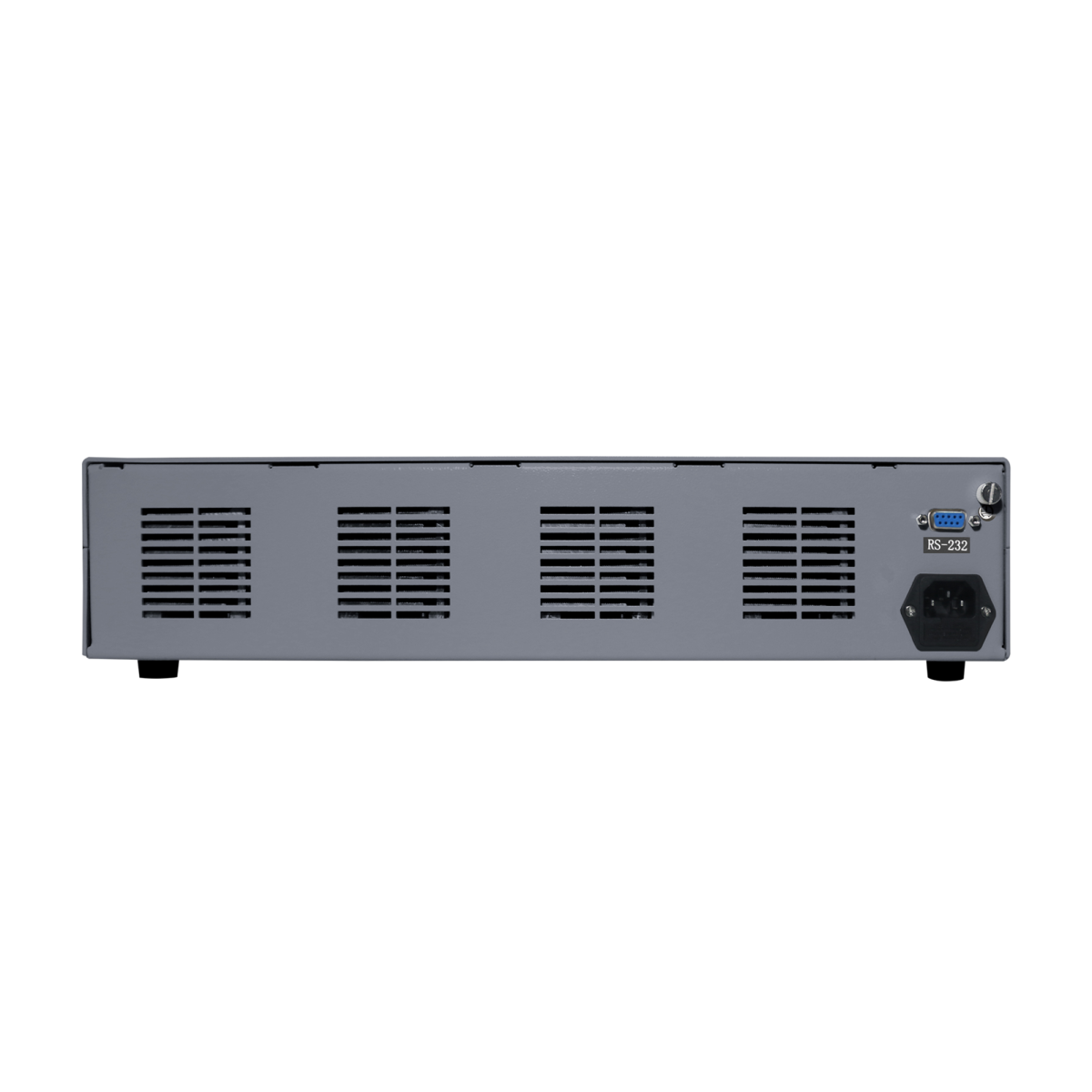

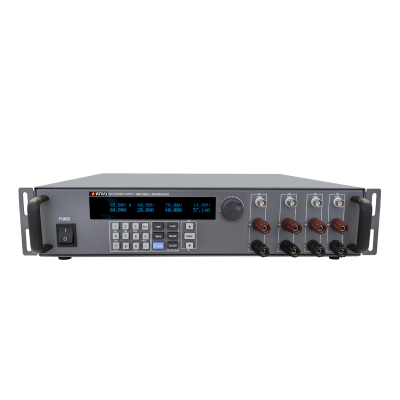

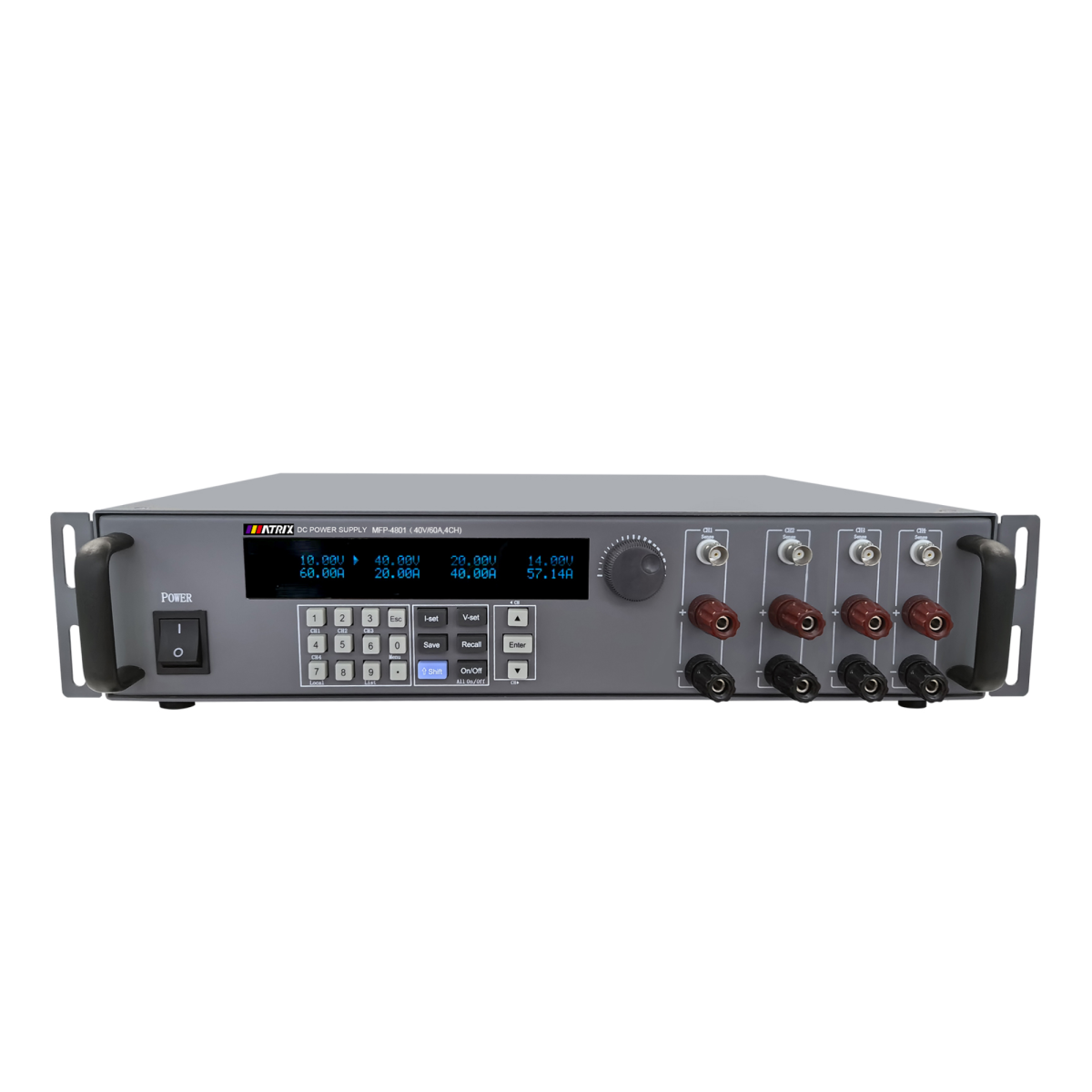

DC Power Supply MFP-4800 Series
MFP-4800 series is a h DC power supply stands out with its exceptional resolution, reaching an impressive 1 microamp, ensuring unparalleled accuracy in various applications.
A key feature is its waveform curve display function, which provides real-time visualization of output waveforms, allowing users to monitor and analyze the power supply’s performance with ease.
Moreover, the power supply offers adjustable rising slope, enabling users to tailor the output characteristics to meet specific requirements of different devices and circuits, enhancing flexibility and adaptability.
With 100 groups of storage capacity, it allows for convenient saving and recall of various operating parameters, eliminating the need for repeated settings and improving work efficiency.
Additionally, the LIST output function enables sequential execution of pre-set output sequences, making it ideal for automated testing, research, and development scenarios where precise and systematic power supply control is essential.
Want a custom configuration?
·There are two ways to set:voltage and current,using
a numeric keypad and knob adjustment
·Resolution of 1mV voltage and 1mA current
Four independent adjustable channels,isolated from
each other
·Voltage compensation function ensures accuracy
·List sequence output function
·Standard 2U model
·Intelligent temperature controlled fan,quieter operat
ing environment
·9 preset storage functions
| Model | MFP-4801 | MFP-4802 | MFP-4803 | MFP-4804 | MFP-4805 | MFP-4806 | MFP-4807 | |
| AC input |
Number of phases |
lph+N+PE |
||||||
| Voltage | 220VAC±10% | |||||||
|
Frequency |
45～66Hz | |||||||
|
Power factor |
≥0.99 |
|||||||
| DC output | Voltage | 0～40V*4CH | 0～80V*4CH | 0～200V*4CH | 0～360V*4CH | 0～500V*4CH | 0～800V*4CH | 0～1000V*4CH |
| Current | 0～60A*4CH | 0～30A*4CH |
0～12.5A*4CH |
0～7.5A*4CH |
0～5A*4CH | 0～3A*4CH |
0～2.5A*4CH |
|
| Power | 0～800W*4CH | |||||||
| Efficiency | ≤89% | ≤91% | ≤91% | ≤91% | ≤91% | ≤91% | ≤91% | |
| Programming
accuracy |
Voltage |
≤±(0.05%+0.04%FS) |
||||||
| Current | ≤±(0.15%+0.1%FS) | |||||||
| Power | ≤±0.8%ES | |||||||
| Readback accuracy |
Voltage |
≤±(0.05%+0.04%FS) |
||||||
| Current |
≤±(0.15%+0.1%FS) |
|||||||
| Power | ≤±0.8%FS | |||||||
| Ripple and noise |
RMS (20Hz- 300kHz |
15mVrms | 20mVms | 30mVrms | 60mVrms | 75mVrms | 120mVrms | 150mVrms |
| P-P (20Hz- 20MHz) |
150mVpp | 200mVpp | 270mVpp | 375mVpp | 480mVpp | 780mVpp | 820mVpp | |
| Source effect | Voltage | ≤0.02%FS (±10%AUAc Input) | ||||||
| Current | ≤0.05%FS(±10%AUAc Input) | |||||||
| Load effect |
Voltage |
≤0.05%FS (load regulation ratio of 0-100%) |
||||||
| Current | ≤0.15%FS (load regulation ratio of 0-100%Uoc) | |||||||
| Dynamic
response time |
Load adjustment |
≤2 ms (load adjustment from 10-100%) | ||||||
| Output voltage rise time |
Max 30 ms(10～90%Full scale) | |||||||
|
No-load voltage |
240ms | |||||||
|
Full load voltage |
20ms | |||||||
| Protection function | OTP,OVP,OCP,OPP,PF | |||||||
|
Communication interface |
RS485 communication interface |
|||||||
| Work Environment | Working temperature:0～50℃,humidity:<80%,no condensation,storage temperature:-20～70℃,altitude:<2000m | |||||||
|
Isolation withstand voltage |
1000 VDC(output to earth) | |||||||
