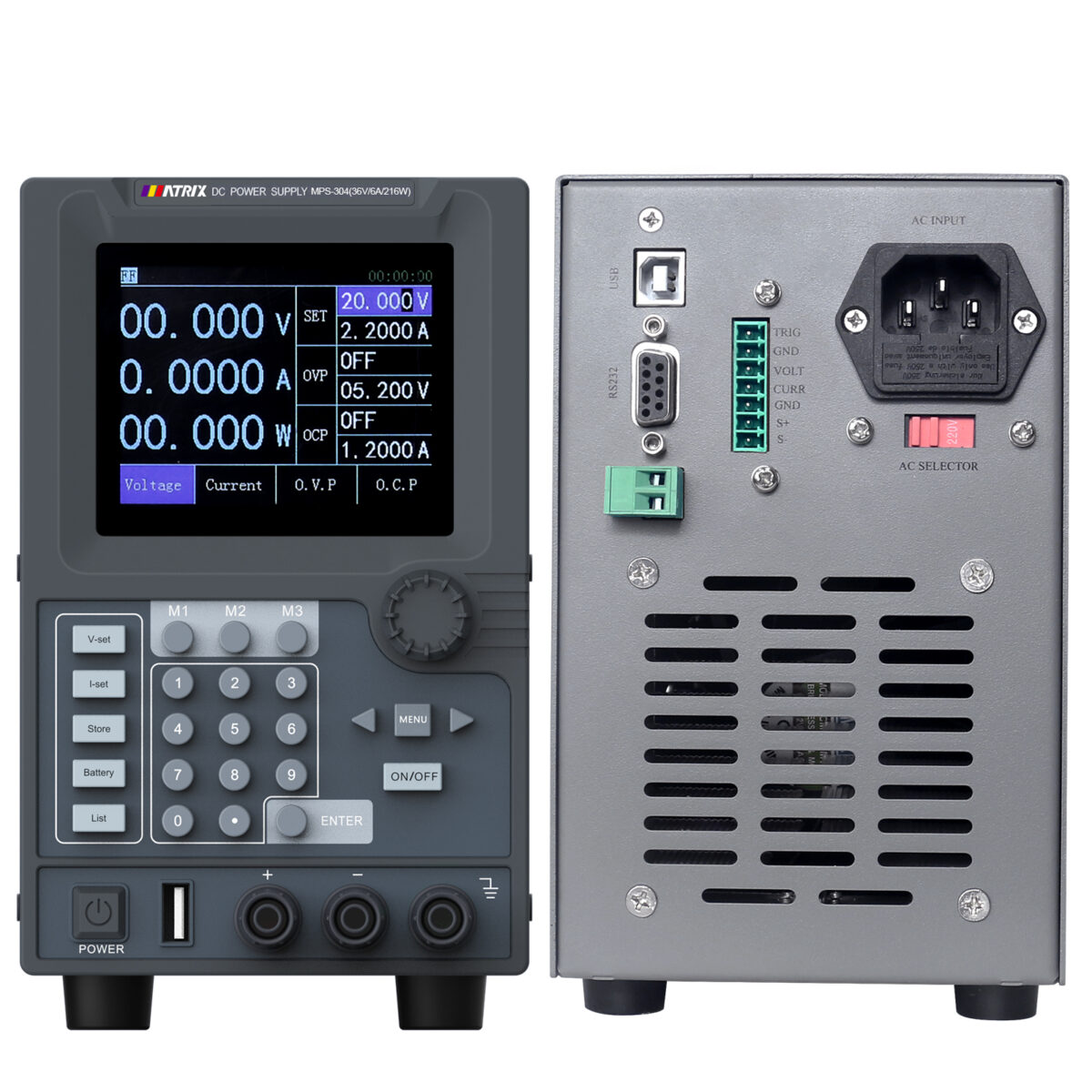

DC Power Supply MPS-300 Series
MPS-300 series is a h DC power supply stands out with its exceptional resolution, reaching an impressive 1 microamp, ensuring unparalleled accuracy in various applications.
A key feature is its waveform curve display function, which provides real-time visualization of output waveforms, allowing users to monitor and analyze the power supply’s performance with ease.
Moreover, the power supply offers adjustable rising slope, enabling users to tailor the output characteristics to meet specific requirements of different devices and circuits, enhancing flexibility and adaptability.
With 100 groups of storage capacity, it allows for convenient saving and recall of various operating parameters, eliminating the need for repeated settings and improving work efficiency.
Additionally, the LIST output function enables sequential execution of pre-set output sequences, making it ideal for automated testing, research, and development scenarios where precise and systematic power supply control is essential.
Want a custom configuration?
·Resolution:Voltage 1mV,current 0.1mA,power 1mW
·Input voltage 110V/220V switching,globally applicable
·Voltage remote compensation function ensures accuracy
of use
·External USB drive with file saving and reading functions
·Battery charging function

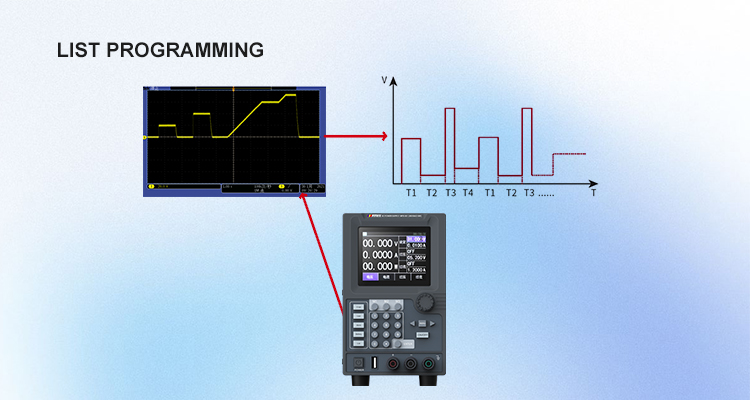

·List editing and output function
·Adjustable upward slope
·External triggering function
| Model | MPS-301 | MPS-302 | MPS-303 | MPS-304 | MPS-305 | MPS-306 | MPS-307 | MPS-308 | MPS-309 | MPS-310 | |
| Rated output voltage | 0~20V | 0~20V | 0~36V | 0~36V | 0~36V | 0~60V | 0~60V | 0~80V | 0~100V | 0~160V | |
|
Rated output current |
0~6A | 0~10A | 0~3A | 0~6A | 0~10A | 0~3A | 0~6A | 0~2A | 0~1A | 0~1A | |
|
Rated output power |
120W | 200W | 108W | 216W | 360W | 180W | 360W | 160W | 100W | 160W | |
|
Load regulation |
Voltage | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+8mV | 0.05%+5mV | 0.05%+5mV | 0.05%+5mV |
| Current | 0.1%+3mA | 0.1%+5mA | 0.1%+3mA | 0.1%+3mA | 0.1%+5mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | |
| Line regulation rate |
Voltage | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+8mV | 0.05%+5mV | 0.05%+5mV | 0.05%+5mV |
| Current | 0.1%+3mA | 0.1%+5mA | 0.1%+3mA | 0.1%+3mA | 0.1%+5mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | 0.1%+3mA | |
|
Setting |
Voltage | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV |
| Current |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
|
|
Read back |
Voltage |
1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV |
| Current |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
0.1mA |
|
|
Setting accuracy |
Voltage |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
| Current |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
|
|
Read back |
Voltage |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
≤0.1%+5mV |
| Current |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
≤0.2%+1mA |
|
| Ripple and noise (25℃±5℃) |
Voltage |
5mVrms | 8mVrms | 5mVrms | 5mVrms | 8mVrms | 5mVrms | 8mVrms | 10mVrms | 15mVrms | 15mVrms |
| Current | 3mArms | 6mArms | 2mArms | 5mArms | 6mArms | 2mArms | 3mArms | 2mArms | 2mArms | 2mArms | |
| Temperature coefficient |
Operating |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
| Storage |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
300ppm |
|
| Machine size (W*H*D) |
mm | 110*183*288 | 110*183*345 | 110*183*288 | 110*183*288 | 110*183*345 |
110*183*288 |
110*183*288 |
110*183*345 | 110*183*345 | 110*183*345 |
| Net weight |
kg |
4.5 | 5.6 | 6.7 | 5.6 |
7 |
5.6 |
5.6 |
5.6 | 5.6 | 5.6 |
| Rise time | <10mS | ||||||||||
