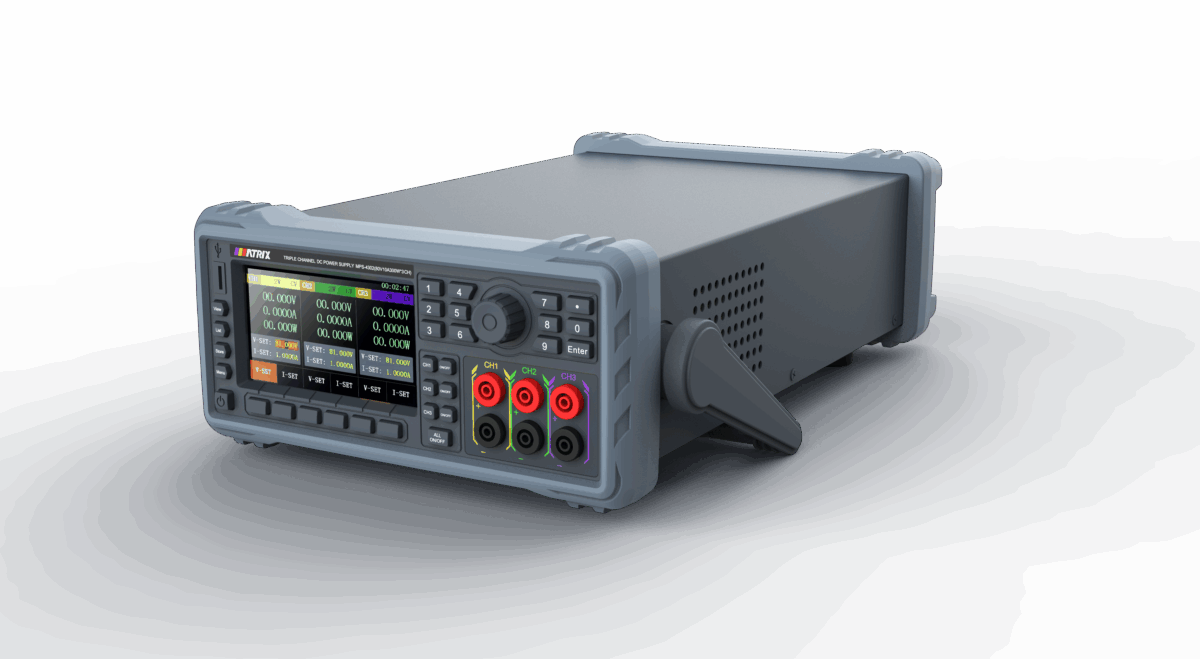

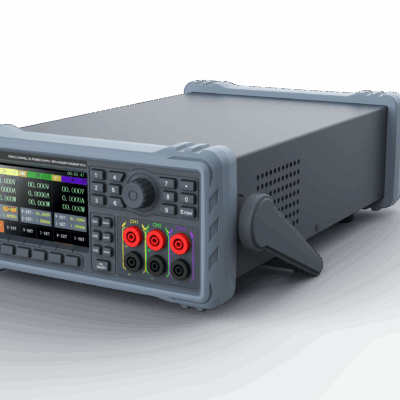

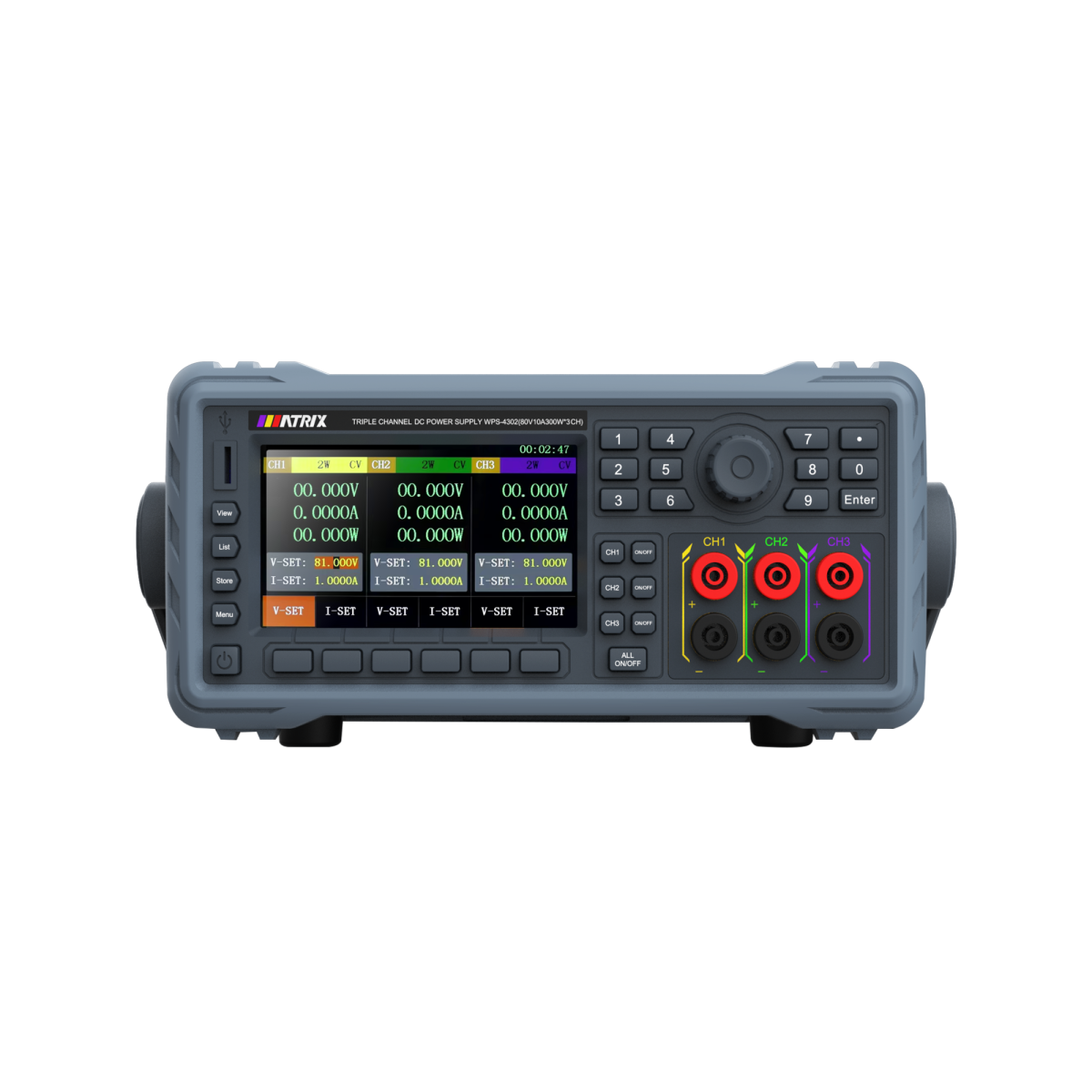

DC Power Supply WPS-4300 Series
Applications
■ Prouduction line work bench routine test
■ Lab and institute
■ Electronic repair
■ Automated equipment integration testing
Want a custom configuration?
·Maximum voltage of 150V,maximum current of 10A,
independent output of 300W per power channel,threechannels
·Resolution of 1mV/0.1mA
·Three independent output switch control
·List editing and output function
·Voltage remote compensation function,four wire more
accurate
·Both front and rear panels can output,suitable for
different occasions
| Model | WPS-4301 | WPS-4302 | WPS-4303 | |
| Rated input voltage | AC220V/110V±10% | |||
| Rated output voltage | 0-80V*3 | 0-80V*3 | 0-150V*3 | |
| Rated output current | 0-6A*3 | 0-10A*3 | 0-5A*3 | |
| Rated output power | 200W*3 | 300W*3 | 300W*3 | |
| Load regulation rate | Voltage | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+8mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Line regulation rate | Voltage | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+8mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Setting resolution | Voltage | 1mV | 1mV | 1mV |
| Current | 0.1mA | 0.1mA | 0.1mA | |
| Read back resolution | Voltage | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+8mV |
| Current | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | |
| Settingaccuracy (25℃±5℃) |
Voltage | 1mV | 1mV | 1mV |
| Current | 0.1mA | 0.1mA | 0.1mA | |
| Read back accuracy (25℃±5℃) |
Voltage | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+8mV |
| Current | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | |
| Ripple and noise (25℃±5℃) |
Voltage | <8mVrms | <8mVrms | <8mVrms |
| Current | <5mAms <5mArms <5mArms | |||
| Temperature coefficient |
Operating | Oto 40℃≤80R.H. | ||
| Storage | -15 to 70℃≤80 R.H. | |||
| Machine size(W*H*D) | mm | 230*110*395 | ||
| Net weight | kg | 5KG | ||
