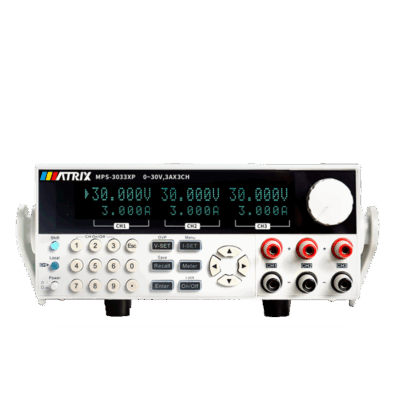

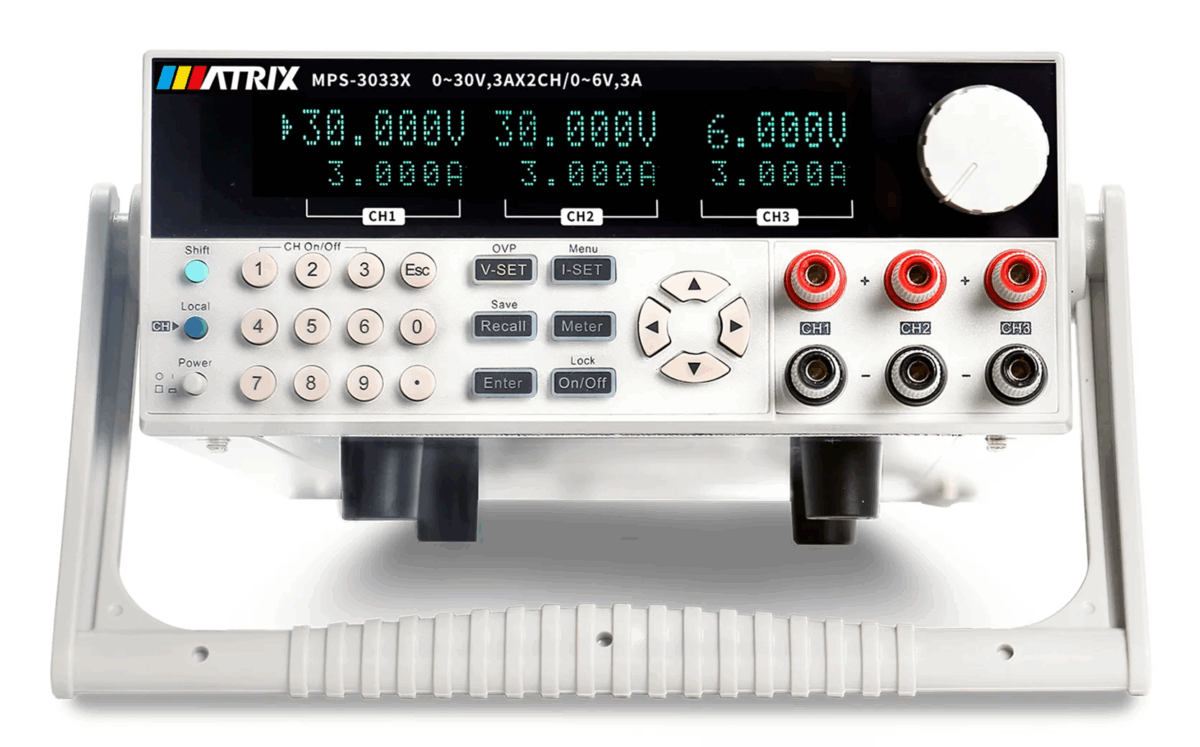

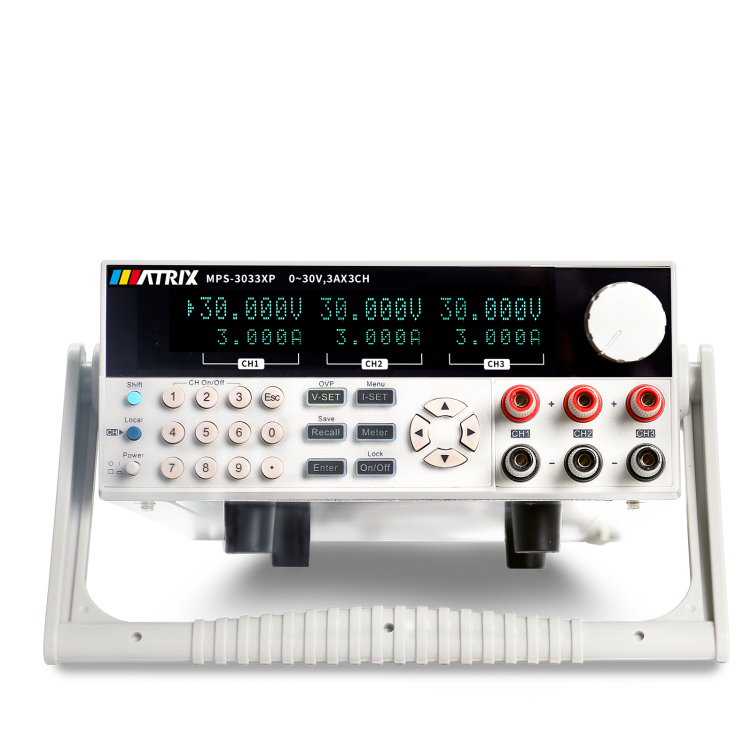

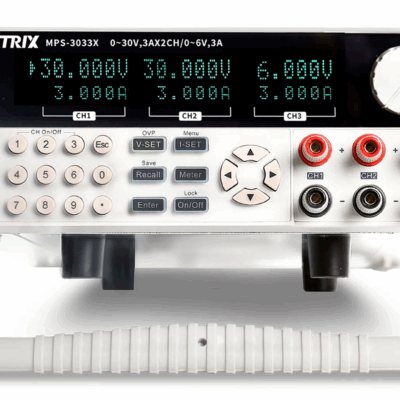

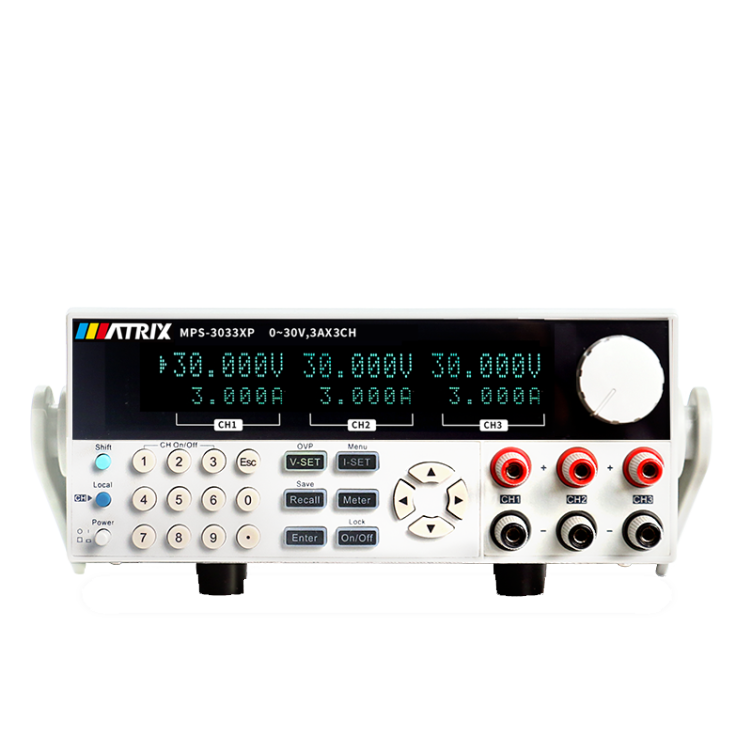

MPS-XP SERIES TRIPLE CHANNEL DC PROGRAMMABLE POWER SUPPLY
Three-channel programmable DC power supply, each output voltage and output current can be set from 0 to the maximum rated output value. The three-channel power supply has high resolution, high precision and high stability.
l Optional serial, parallel or synchronous
l Three channels can display voltage and current values at the same time
l 1/2 2U ultra small size
l Vacuum fluorescent display (VFD)
l Panel function keys LED display
l Remote measurement function to compensate for line voltage drop
l High resolution and accuracy and high stability
l Output can be controlled independently
l Over-voltage, overheat protection
l Intelligent temperature control fan to reduce noise

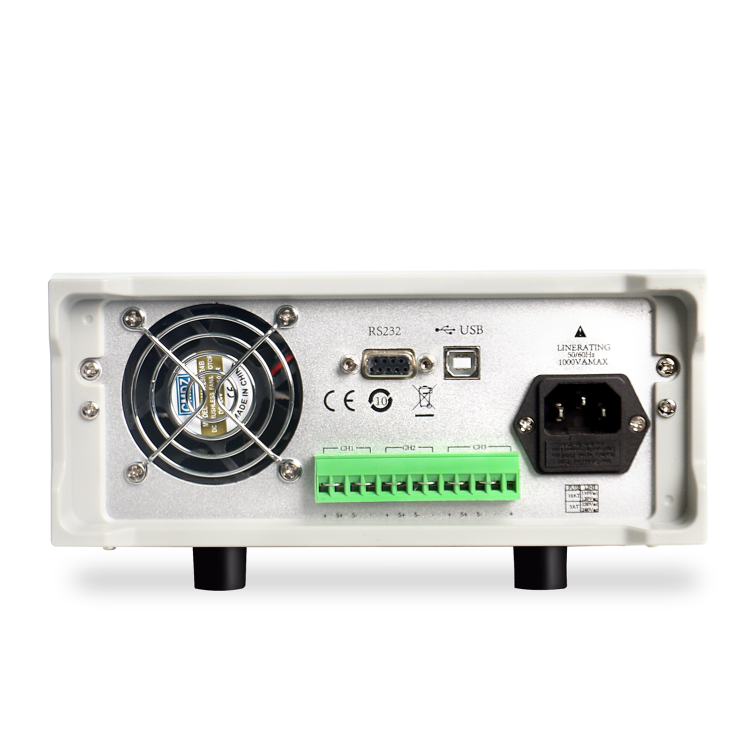

l Standard USB/RS232 communication interface
l Low ripple and noise
l Keep memory function when power off
l Software monitoring through computer
l Can save 40 sets of setting data, quickly store and recall
l The knob can be used to adjust the voltage and current
l Timing output time (0.1~99999.9 seconds)
| Model | MPS-3033XP | MPS-3063XP | MPS-6033XP | |
| Rated output
( 0 °C – 40 °C) |
Voltage | 0~32V*3CH | 0~32V*3CH | 0~62V*3CH |
| OVP | 33V*3CH | 33V*3CH | 63V*3CH | |
| Current | 0~3.2A*3CH | 0~6.2A*3CH | 0~3.2A*3CH | |
| Power | 90W*3CH | 180W*3CH | 180W*3CH | |
| Load regulation
(％of output+offset) |
Voltage | ≤0.01%+3mV | ||
| Current | ≤0.01%+3mA | |||
| Line regulation
(％of output+offset) |
Voltage | ≤0.01%+3mV | ||
| Current | ≤0.01%+3mA | |||
| Setting resolution | Voltage | 1mV | ||
| Current | 1mA | |||
| Readback resolution | Voltage | 1mV | ||
| Current | 1mA | |||
| Setting accuracy
（in 12 months） (25 °C ± 5 °C) (％of output+offset) |
Voltage | ≤0.03%+10mV | ||
| Current | ≤0.1%+5mA | ≤0.1%+8mA | ≤0.1%+5mA | |
| Readback accuracy
(25 °C ± 5 °C) (％of output+offset) |
Voltage | ≤0.03%+10mV | ||
| Current | ≤0.1%+5mA | ≤0.1%+8mA | ≤0.1%+5mA | |
| Ripple and noise
(20Hz-20MHz) |
Voltage(Vp-p) | ≤5mVp-p | ≤6mVp-p | ≤5mVp-p |
| Voltage(rms) | ≤2mVrms | ≤2mVrms | ≤2mVrms | |
| Current(rms) | ≤4mArms | ≤5mArms | ≤4mArms | |
| Output temperature coefficient
(0 °C ~ 40 °C) (％of output+offset) |
Voltage | ≤0.03%+10mV | ||
| Current | ≤0.1%+5mA | ≤0.1%+8mA | ≤0.1%+5mA | |
| Readback temperature coefficient
(％of output+offset) |
Voltage | ≤0.03%+10mV | ||
| Current | ≤0.1%+5mA | ≤0.1%+8mA | ≤0.1%+5mA | |
| Setting accuracy in parallel and series | Voltage | ≤0.2%+5mV | ≤0.2%+5mV | ≤0.2%+10mV |
| Current | ≤0.1%+30mA | |||
| Memory | Storage
/recall |
40 groups | ||
| Timer | Function | Output timer | ||
| Time setting | 0.1s~3600s | |||
| Resolution | 0.1s | |||
| Interface | RS232、USB | |||
| Working temperature | 0~40℃ | |||
| Equipment size（W*H*D) | mm | 255*110*452 | 255*110*452 | 255*110*452 |
| Packing size（W*H*D) | mm | 325*210*547 | 325*210*547 | 325*210*547 |
| N.W | kg | 12 | 14 | 14 |
| G.W | Kg | 13 | 15 | 15 |
