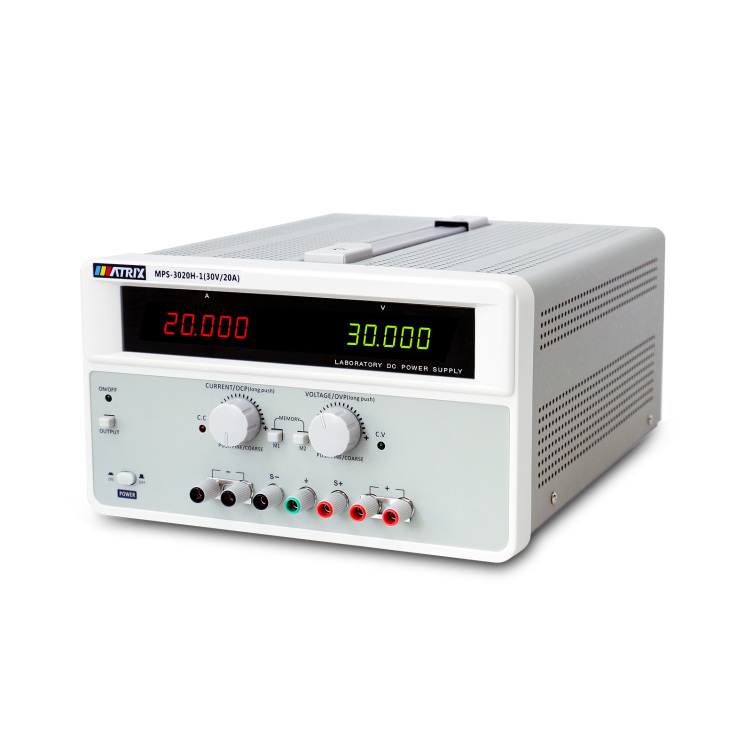

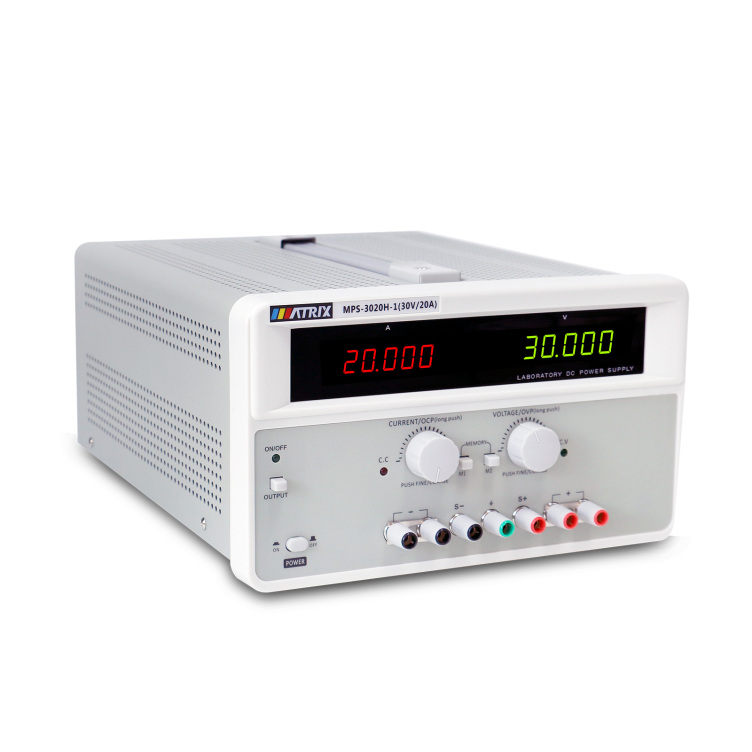

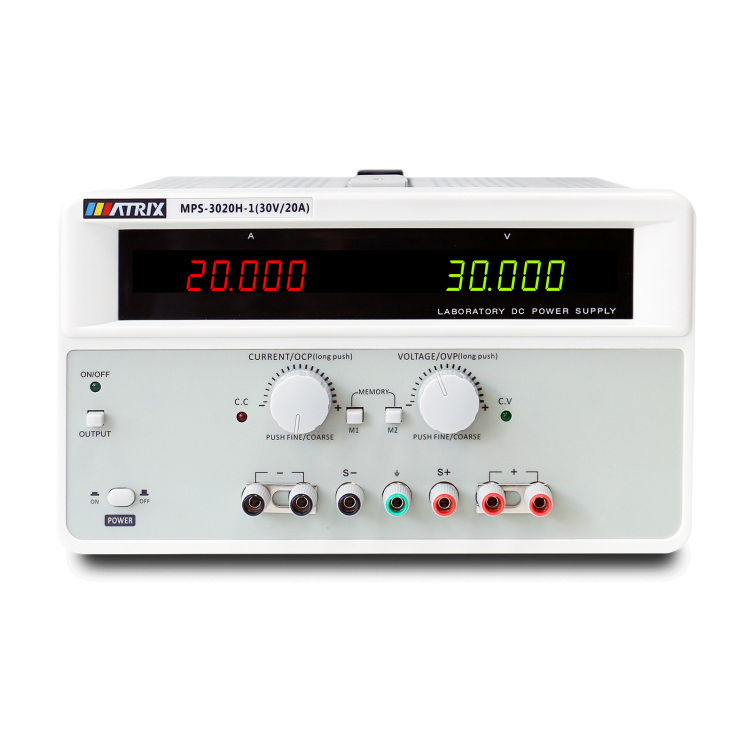

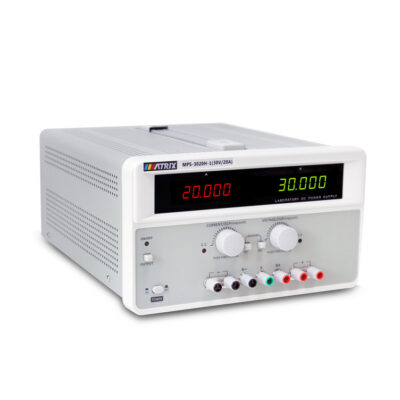

The MPS-H-1(C) Series are high-quality linear DC power supplies, including models from MPS-3010H-1 to MPS-30001H-1, with output voltage ranging from 0~30V to 0~300V and current from 0~1A to 0~20A. Renowned for high precision, multi-functionality, and high stability, they are suitable for laboratories, precision testing, and other scenarios, backed by a 3-year warranty. Current can be conveniently set without short-circuiting, ensuring safe and easy operation. They support two groups of data storage and quick recall, adapting to work needs that require frequent parameter switching. The adjustment knob adopts an encoder switch design, offering comfortable use, long service life, and low failure rates. They support remote voltage compensation and automatic conversion between constant voltage (CV) and constant current (CC) modes. Rich in functions, they include OVP/OCP protection and two groups of parameter storage/recall. The menu allows configuration of power-on state and communication parameters (baud rate 4800-115200, supporting SCPI/MODBUS). Standard RS-232, RS-485 and USB interface is included as standard on the H-1C series. The H-1 series does not include a standard communication interface. With dimensions of 250×150×330mm and a net weight of 8-13kg, they provide reliable support for high-precision testing.
| Model | MPS-3010H-1 | MPS-3020H-1 | MPS-6005H-1 | MPS-6010H-1 | MPS-10003H-1 | MPS-20002H-1 | MPS-30001H-1 | |
| Input voltage | AC 220V/110V±10% 50Hz/60Hz | |||||||
| Rated output | Voltage | 0 – 30V | 0 – 30V | 0 – 60V | 0 – 60V | 0 – 100V | 0 – 200V | 0 – 300V |
| Current | 0 – 10A | 0 – 20A | 0 – 5A | 0 – 10A | 0 – 3A | 0 – 2A | 0 – 1A | |
| Load regulation rate | Voltage | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+5mV | ≤0.01%+5mV | ≤0.01%+8mV | ≤0.01%+12mV | ≤0.01%+12mV |
| Current | ≤0.2%+5mA | ≤0.2%+5mA | ≤0.2%+3mA | ≤0.2%+3mA | ≤0.2%+5mA | ≤0.2%+5mA | ≤0.2%+3mA | |
| Line regulation rate | Voltage | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+5mV | ≤0.01%+5mV | ≤0.01%+8mV | ≤0.01%+12mV | ≤0.01%+12mV |
| Current | ≤0.2%+5mA | ≤0.2%+5mA | ≤0.2%+3mA | ≤0.2%+3mA | ≤0.2%+5mA | ≤0.2%+5mA | ≤0.2%+3mA | |
| Setting resolution | Voltage | 1mV | 1mV | 1mV | 1mV | 10mV | 10mV | 10mV |
| Current | 1mA | 1mA | 1mA | 1mA | 1mA | 1mA | 1mA | |
| Setting accuracy | Voltage | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+80mV | ≤0.01%+80mV | ≤0.01%+80mV |
| Current | ≤0.1%+5mA | ≤0.1%+10mA | ≤0.1%+3mA | ≤0.1%+3mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+3mA | |
| Readback resolution | Voltage | 1mV | 1mV | 1mV | 1mV | 10mV | 10mV | 10mV |
| Current | 1mA | 1mA | 1mA | 1mA | 1mA | 1mA | 1mA | |
| Readback accuracy | Voltage | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+10mV | ≤0.01%+80mV | ≤0.01%+80mV | ≤0.01%+80mV |
| Current | ≤0.1%+5mA | ≤0.1%+10mA | ≤0.1%+3mA | ≤0.1%+3mA | ≤0.1%+5mA | ≤0.1%+5mA | ≤0.1%+3mA | |
| Ripple and noise | Voltage | ≤3mV(rms) | ||||||
| Current | ≤5mA(rms) | |||||||
| Working temperature | 0 – 40℃≤80%RH | |||||||
| Size (WHD) | mm | 250*150*330 | ||||||
| Weight | kg | 8 | 13 | 8 | 13 | 12 | 12 | 12 |

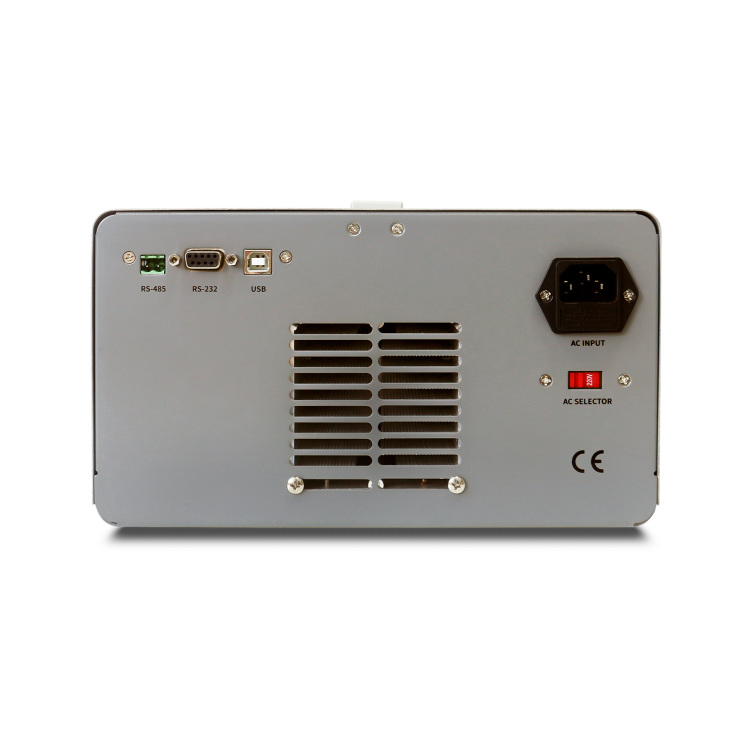

* If with interface, the model NO. will be changed to MPS-H-1C, for example,MPS-3010H-1C means it has RS-232,RS-485 and USB.
