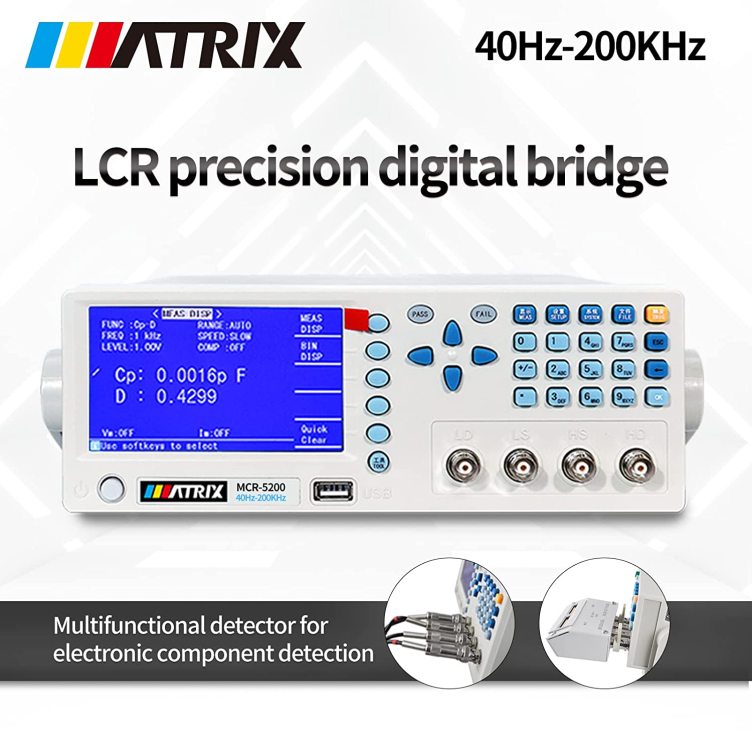

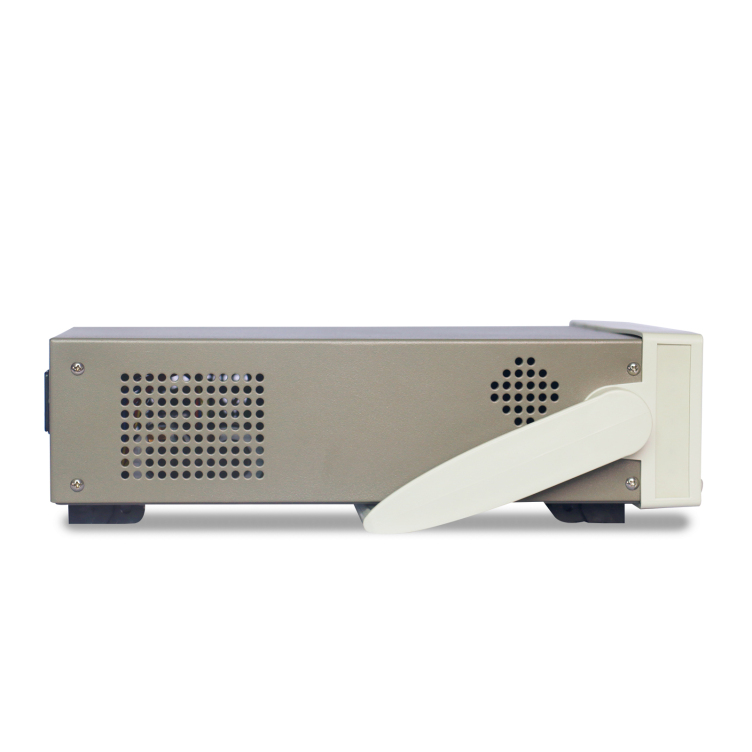

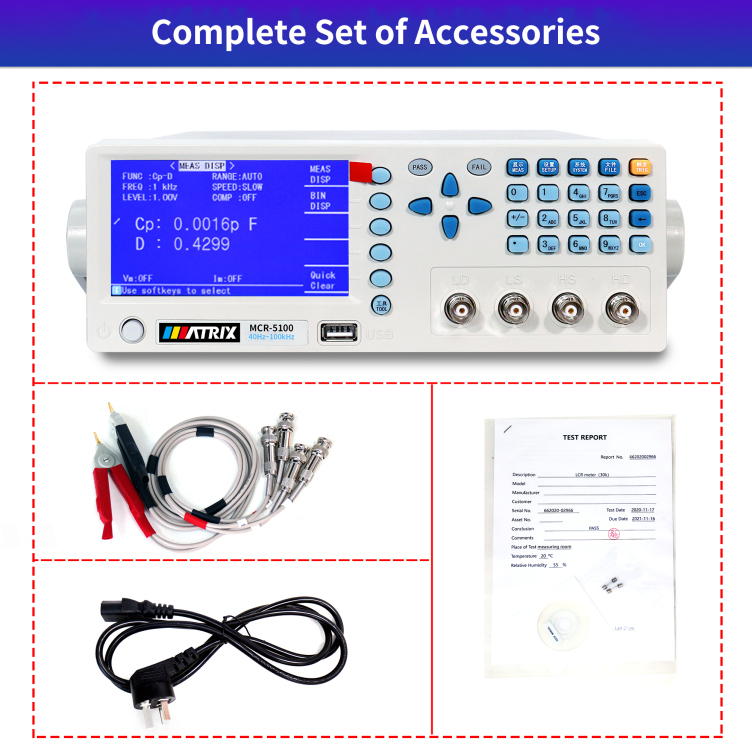

MCR-5000 Series Digital LCR Meter
MCR5000 series is a multifunctional LCR precision meter used for testing various electronic components like capacitor, resistor and inductor. Adopt 4.3-inch TFT LCD display. It is a high speed, wide band, 5 bit test resolution impedance measuring instrument with 40hz-200khz multiple frequency
Want a custom configuration?
- With new 32-bit core processor, the data is as good as the one of foreign first-class equipment

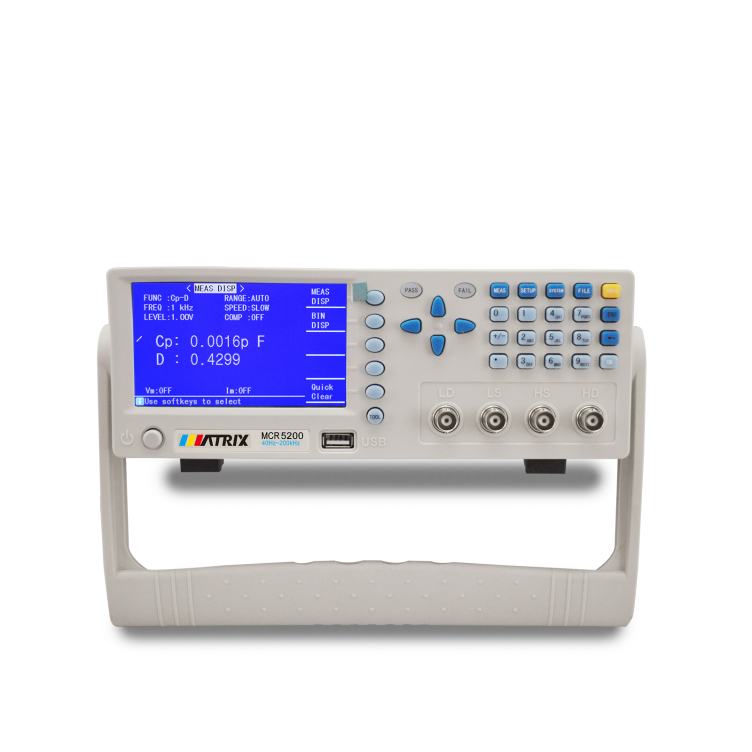

- 4.3 inch true color TFT display
- 30Ω, 100Ωtwo types of different signal source output resistance
- Built- in comparator, 5 grade flexible quanlified and defective alarming mode shutdown automatically save test conditions, humanized operation
- Internal more than 100 sets of settings files, U disk extension to save multiple groups of test or recall simplified Chinese, English is optional
| Measurement function | |
| MCR test parameters | | Z|, |Y|, C, L, X, B, R, G, D, Q, θ |
| Test frequency | MCR5010 ：100Hz,120Hz,1kHz,10kHz
MCR5030 ：100Hz,120Hz,1kHz,10kHz，20kHz，30kHz MCR5100 ： 40Hz、50Hz、60Hz、80Hz、100Hz、120Hz、150Hz、200Hz、250Hz、300Hz、400Hz、500Hz、600Hz、800Hz、1kHz、1.2kHz、1.5kHz、2kHz、2.5kHz、3kHz、4kHz、5kHz、6kHz、7.5kHz、10kHz、12kHz、15kHz、20kHz、25kHz、30kHz、40kHz、50kHz、60kHz、75kHz、100kHz MCR5200 ：40Hz、50Hz、60Hz、80Hz、100Hz、120Hz、150Hz、200Hz、250Hz、300Hz、400Hz、500Hz、600Hz、800Hz、1kHz、1.2kHz、1.5kHz、2kHz、2.5kHz、3kHz、4kHz、5kHz、6kHz、7.5kHz、10kHz、12kHz、15kHz、20kHz、25kHz、30kHz、40kHz、50kHz、60kHz、75kHz、100kHz、120kHz、150kHz、200kHz |
| Basic measurement accuracy | 0.1% (MCR5010:0.15%) |
| equivalent circuit | In series, parallel |
| Mathematics function | Absolute deviation, Percentage deviation |
| Range mode | AUTO, HOLD, Manual selection |
| Trigger mode | INT, EXT |
| Speed（≥1kHz） | FAST: less than 30 times per second,
MED : 10 times per second, SLOW: 3 times per second, |
| Average number | 1—255 |
| Delay Time | 0—6s, 1ms step |
| Calibration function | Quick Clear / SINGLE SHORT /SINGLE OPEN |
| Test terminal | Five terminals |
| Display mode | Direct display，Δ，Δ%，V/I |
| Monitor | 5 bit resolution, 4.3 inch LCD display |
| test signal | |
| Output impedance | 30 Ω,100Ω |
| Test signal level | 0.1V、0.3V、1V ; Accuracy：5% |
| Display range | |
| |Z|, R, X | 0.01m Ω — 99.999 MΩ |
| |Y|, G, B | 0.0001µS — 99.999 S |
| C | 0.0001 pF — 9.9999 F |
| L | 0.0001 µH — 999.99 H |
| D | 0.0001 — 9.9999 |
| Q | 0.0001 — 99999 |
| θ (DEG) | -179.99º — 179.99 º |
| θ (RAD) | -3.14159 — 3.14159 |
| Other | |
| Comparator function | Five BIN sorting function（BIN1,BIN2,BIN3,AUX,OUT） |
| storage | Internal: 105; external can save 500 |

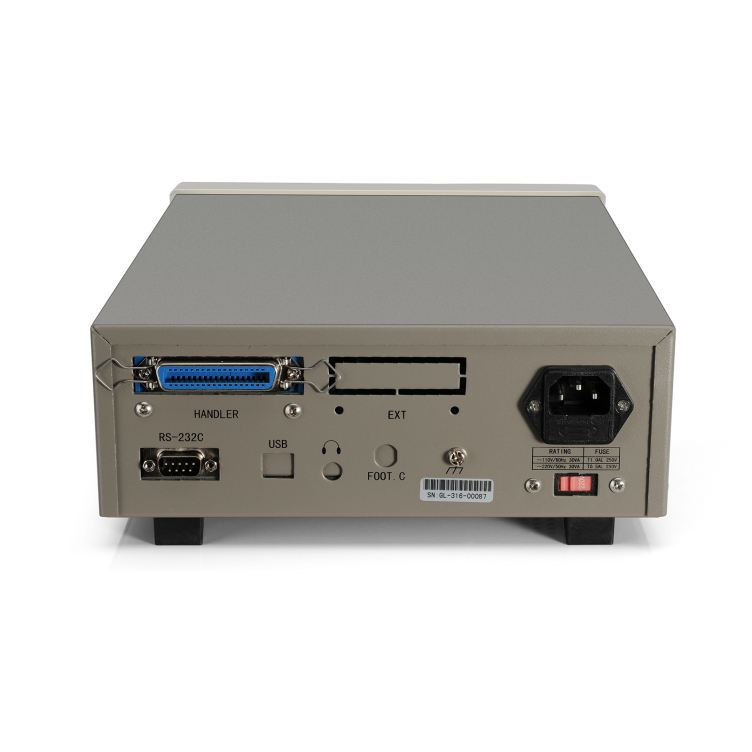

| Interface | Standard:RS232C,USB HOST,HANDLER（Except MCR5010 ）、
Optional:USB DEVICE，headphone jack，Foot switch interface ,GPIB |
