MCR8000 SERIES LCR METER

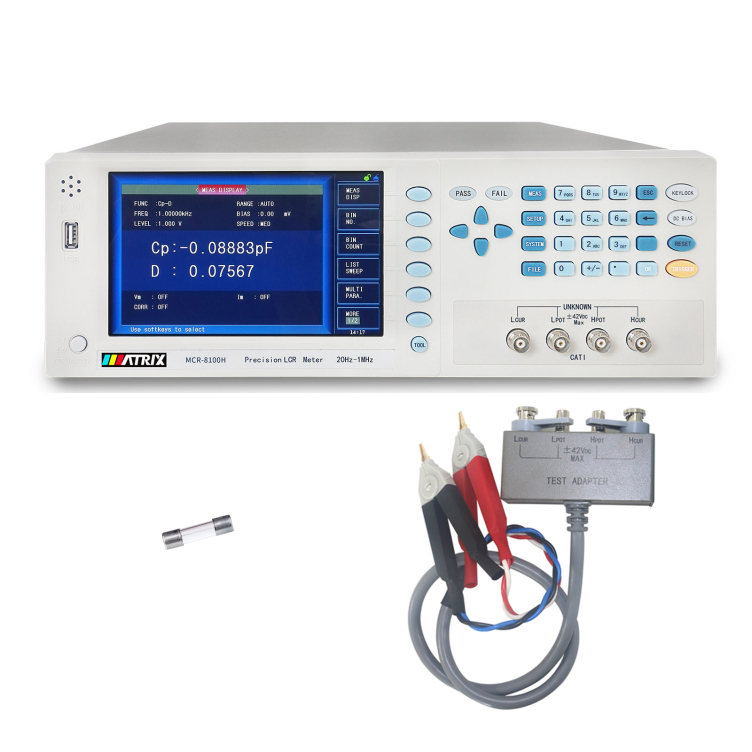

MCR8000 series is a LCR meter also called impedance analyzer with high precision and high quality. With new 32-bit core, as good as first class equipment . 7 inch true color TFT display. 20Hz-5MHz testing frequency, frequency point continuously adjustable
Want a custom configuration?
- 0.05% bacis testing accuracy, high speed in testing;
- -5V~+5V(-100mA~+100mA)Internal DC bias;
- Automatic level control function;
- Graphic scan analysis function, support frequency /level/offset scanning, display the characteristics; 30Ω，50Ω，100Ω，10/CC four different signal output impedance;
-
Test frequency MCR-8100H : 20Hz – 1MHz , Min. 0.0001Hz step MCR-8200H: 20Hz – 2MHz, Min.0.0001Hz step
MCR-8500H: 20Hz – 5MHz , Min. 0.0001Hz step
parameter | Z|, |Y|, C, L, X, B, R, G, D, Q, θ ,DCR Basic accuracy 0.05% , (0.1% for DCR test) equivalent circuit Series & parallel Mathematics function Absolute deviation, Percentage deviation Range Auto, Hold, Manual selection Trigger mode INT, MAN, EXT, BUS Speed（≥1kHz） FAST: 75 times/second, MED: 12 times/second, SLOW: 3 times/second Average 1—255 Delay Time 0—60s Calibration open / short / load Test terminal Five terminal List scan 10 point list scanning function Comparative function eleven BIN sorting function（BIN1~BIN9,AUX,OUT） Multi parameter test Yes Display mode Direct，Δ，Δ%，V/I Monitor 800 x 480 RGB, 7 inch LCD TFT display Output impedance 30 Ω, 100 Ω, 10 /100, 10 /CC Test level 5 mV－2V , Accuracy：10% (Customizable maximum 10V) Constant level：10 mV－1 V Accuracy：5%
DC bias source 0V，1.5V，2V，Accuracy：1% Display range |Z|, R, X 0.01mΩ — 99.9999 MΩ DCR 0.001 mΩ — 99.9999 MΩ |Y|, G, B 0.00001µS — 99.9999S C 0.00001pF — 9.99999F L 0.00001µH — 99.9999kH D 0.00001 — 9.99999 Q 0.00001 — 9999.99 θ (DEG) -179.999º — 179.999º θ (RAD) -3.14159 — 3.14159 Others size 375mm(W）*135mm（H）*350mm(L） Net weight About 7.2 kg
