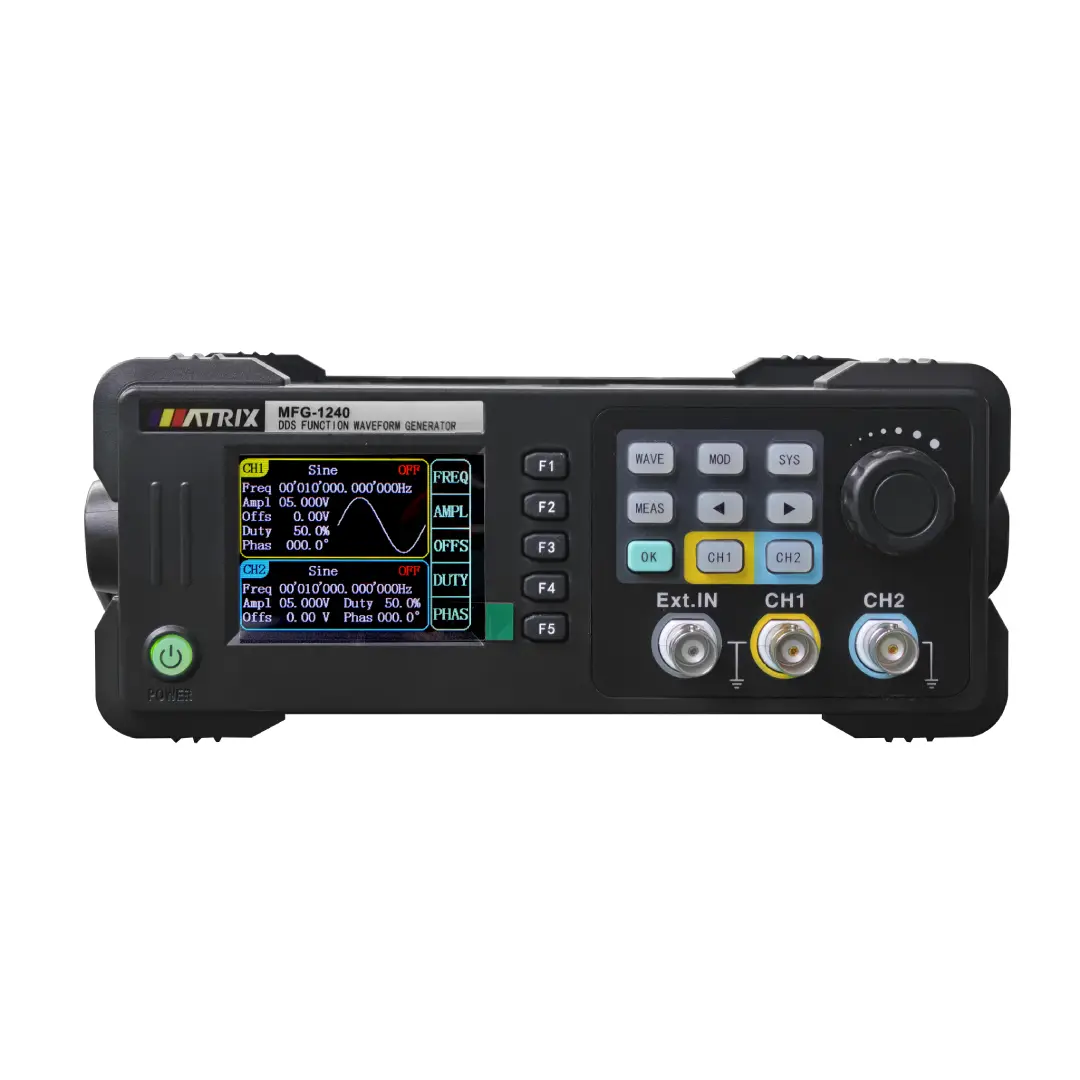

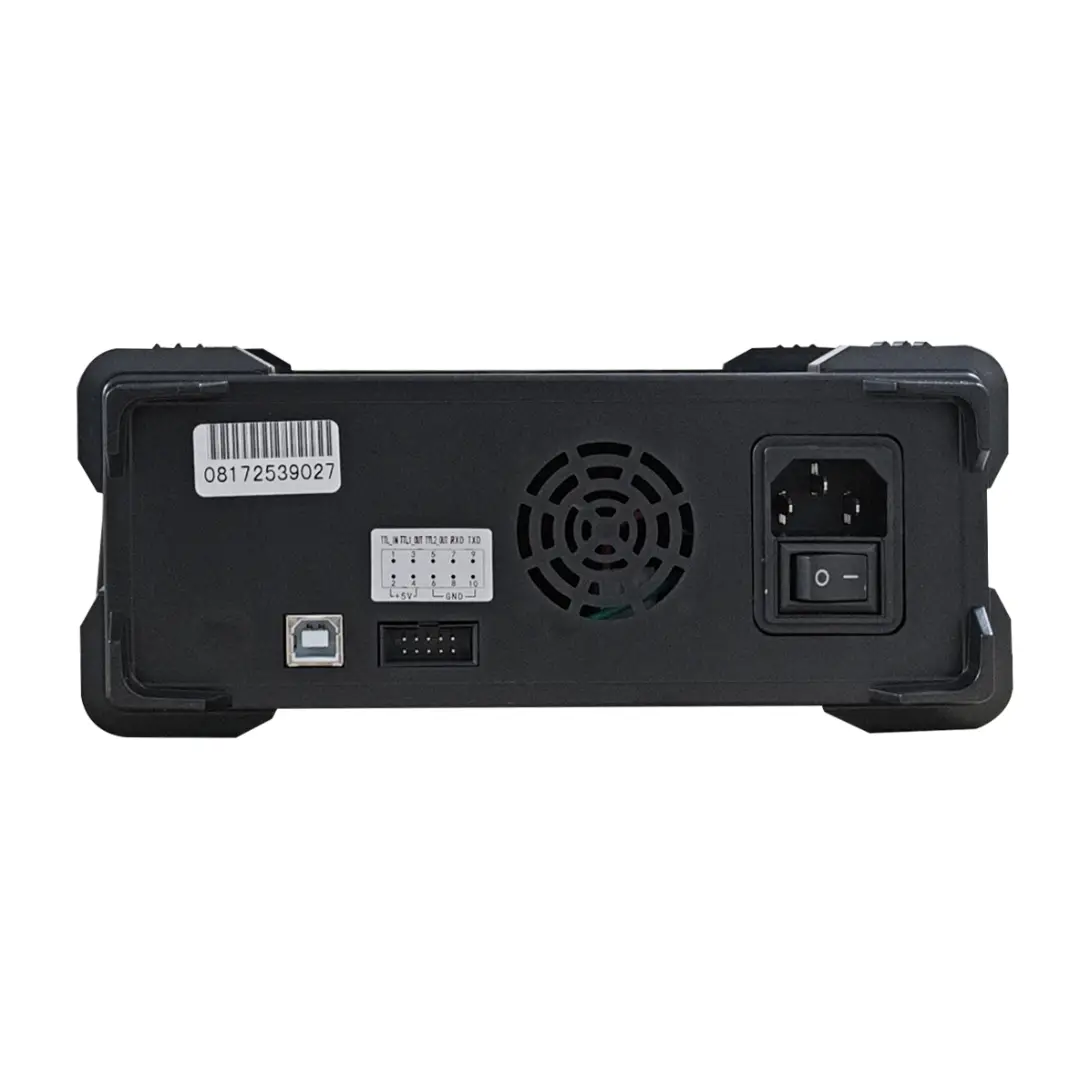

MFG-1000 series dual channel function/arbitrary waveform generator

MFG-1000 series dual channel function/arbitrary waveform generator

  • Adopting a 2.4 inch 320x240TFT LCD screen with a clear graphical interface;
  • Support for Chinese and English menus;
  • Dual channels are independent of each other and have phase synchronization function;
  • 200MSa/S sampling rate, 13 bit vertical resolution, 8k storage depth;
  • Built in 5 basic waveforms and 32 arbitrary waveforms;
  • Waveform storage; Support internal storage of 50 sets of user-defined edited waveforms;
  • Pulse wave output with adjustable edge time;
  • Internal AM, FM, and PM modulation functions (optional for external AM, FM, and PM modulation);
  • Internal/external ASK, FSK, PSK modulation functions;
  • Dual channel output, with a maximum output frequency of 60M;
  • Output of linear/logarithmic sweep and burst (pulse train) waveforms;
  • Equipped with a 100MHz high-precision frequency meter and 32-bit counter;
  • Standard USB Device interface; Optional external analog modulation interface;
  • Equipped with multi-functional arbitrary waveform editing software.
Want a custom configuration?
Contact Us
Share your love

The MFG-1000 series dual channel function/arbitrary waveform generator uses direct digital synthesis (DDS) technology to establish stable and accurate output signals.The instrument output channel is set with CH1 channel output and CH2 channel output.Both channels can output basic waveforms and arbitrary waves.You can choose one channel for various modulation waveform outputs, and the other channel for basic waveform output.

O utline specification

POWER
Input voltage AC 110~240V，50~60Hz
Consumption <15W
D ISPLAY
Type 2.4inch TFT  LCD
Resolution 320×240
Color 16M  color
Environment
Temperature range Operation ：10℃~+40℃

Non-operation ：-10℃~+60℃
Cooling method natural cooling
Humidity range + 35℃ below: 90%relative humidity

+35℃ ~ +40℃：≤60％relative humidity
Interface USB Device



Standard accessories:

  • Power cord 1pc;
  • BNC  cable 1pc;

Optional accessories:

  • BNC-alligator cable；
  • Cabinet installation kit;
  • USB  cable.

Product technical indicators

Frequency features
Model MFG-1220 MFG-1230 MFG-1240 MFG-1250 MFG-1260
Sine wave 1μHz~ 20MHz 1μHz ~ 30MHz 1μHz ~ 40MHz 1μHz ~ 50MHz 1μHz ~ 60MHz
Square wave 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz
Triangular wave 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz 1μHz ~ 15MHz
Pulse wave 100μHz ~ 6MHz 100μHz ~ 6MHz 100μHz ~ 6MHz 100μHz ~ 6MHz 100μHz ~ 6MHz
Arbitrary wave 1μHz ~ 6MHz 1μHz ~ 6MHz 1μHz ~ 6MHz 1μHz ~ 6MHz 1μHz ~ 6MHz
Frequency resolution 1μHz
Frequency accuracy ±20ppm
Frequency stability ±1ppm/3hour
Waveform characteristics
 Waveform type  Sine wave, square wave, triangular wave, pulse, noise, arbitrary wave (including DC).

There are 32 arbitrary waveforms and 50 user-defined waveforms among them.
Waveform length 8192 points
Waveform sample rate 200MSa/s
Waveform vertical resolution 13digits
sine wave characteristics
Sine wave Harmonic suppression system ≥45dBc(<1MHz);

≥40dBc(1MHz~20MHz)
Total harmonic distortion <0.8%(20Hz ~ 20kHz, 0dBm)
Square wave signal characteristics
Square wave Up / down time <20ns
overshoot <5%
Duty cycle Frequency <100 kHz: 1%~99%;

100 kHz frequency <5 MHz: 20% ~ 80%;

5 MHz frequency: 40% ~ 60% (0.1% resolution)
Pulse wave characteristics
Impulse wave Pulse length Minimum of 20ns; 1ns resolution
Bedge jump time Minimum of 20ns;
Overshoot <5%
Shake Of 6ns + 0.1% of the cycle
Saw tooth wave characteristics
Sawtooth wave degree of linearity ≥98%(0.01Hz~10kHz)
symmetry 0.0-100.0% (resolution 0.1%)
Output characteristic
Amplitude
Range of amplitude Frequency of <10 MHz 10 MHz frequency <30 MHz And the 30 MHz frequency
2mVpp ~ 20Vpp 2mVpp ~10Vpp 2mVpp ~5Vpp
Amplitude resolution 1mV
Accuracy of amplitude Set the value of 1% + 2 mVpp (1 kHz sine wave, 0 offset,> 10 mVpp)
Flat amplitude

(1 Vpp, relative to the 1k sine wave)

 ±0.4dB  <10MHz ；

±1.0dB  ≥10MHz。
Output impedence 50 Ω ± 10% (typical)
Protect All signal outputs can operate within 60s under load short circuit
Shifting
Output amplitude> 0.1V 2 mV < Output amplitude ≤0.1V
Output range ±10Vpk，ac + dc ±0.250Vpk，ac + dc
The bias resolution 1mV
phase characteristic
Phase regulation range 0~359.9°
Phase resolution 0.1°
External measurement function
Frequency meter function Frequency measurement range 1Hz ~ 100MHz
Gate time 0.01s ~ 10s continuous regulation
Counter function counter range 0 ~ 4294967295
Count the way hand movement
Input signal voltage range 2Vpp~20Vpp
coupled modes DC or AC
Pulse width measurement 1ns resolution with a maximum measurement of 20s
Cycle measurement 1ns resolution with a maximum measurement of 20s
AM modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external VCO (external is optional)
Modulation wave Sine wave, square wave, triangular wave, upper oblique wave and lower oblique wave
Modulating frequency 2mHz~20kHz
Depth of modulation 0%~120%
FM modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external VCO (external is optional)
Modulation wave Sine wave, square wave, triangular wave, upper oblique wave and lower oblique wave
Modulating frequency 2mHz~20kHz
frequency deviation 0~ Maximum carrier frequency
PM modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external VCO (external is optional)
Modulation wave Sine wave, square wave, triangular wave, upper oblique wave and lower oblique wave
Modulating frequency 2mHz~20kHz
Phase deviation 0°~360°
ASK modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external
Modulation wave Square wave of the 50% duty cycle
Modulation rate 2mHz~1MHz
Modulation amplitude 0~ The carrier amplitude
FSK modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external
Modulation wave Square wave of the 50% duty cycle
Modulation rate 2mHz~1MHz
Frequency hopping Range of carrier frequency
PSK modulate
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, zigzag wave, pulse wave, arbitrary wave (except DC)
Source Internal / external
Modulation wave Square wave of the 50% duty cycle
Modulation rate 2mHz~1MHz
Modulation phase 0°~360°
Scan frequency function
Scan frequency channel And either CH 1 or CH2
Scan frequency type Linear scan, and logarithmic scan
Scan frequency time 1ms ~ 999.999s
Set the scope The start point and the end points are arbitrarily set
Scan the direction of the frequency Forward, reverse, and round-trip
Trigger source Internal, external, and manual work
Catchment characteristics
Outgoing channel And either CH 1 or CH2
Signal carrier Sine wave, square wave, serrated wave, pulse wave, noise, arbitrary wave (except DC)
Pulse count 1~1048575 or unlimited, gated
Start / stop phase 0~360°
Intercycle 1μ s~500s
The gating source outside
Trigger source Internal, external, and manual work
Trigger input
Input signal voltage range 2Vpp~20Vpp
Coupled modes DC or AC
Pulse length >100ns
Reaction time <500ns (pulse string)
<10 μ s (sweep)
Analulated modulation input (optional)
Input impedence 1M Ω
Signals range ±2.5V ac+dc
