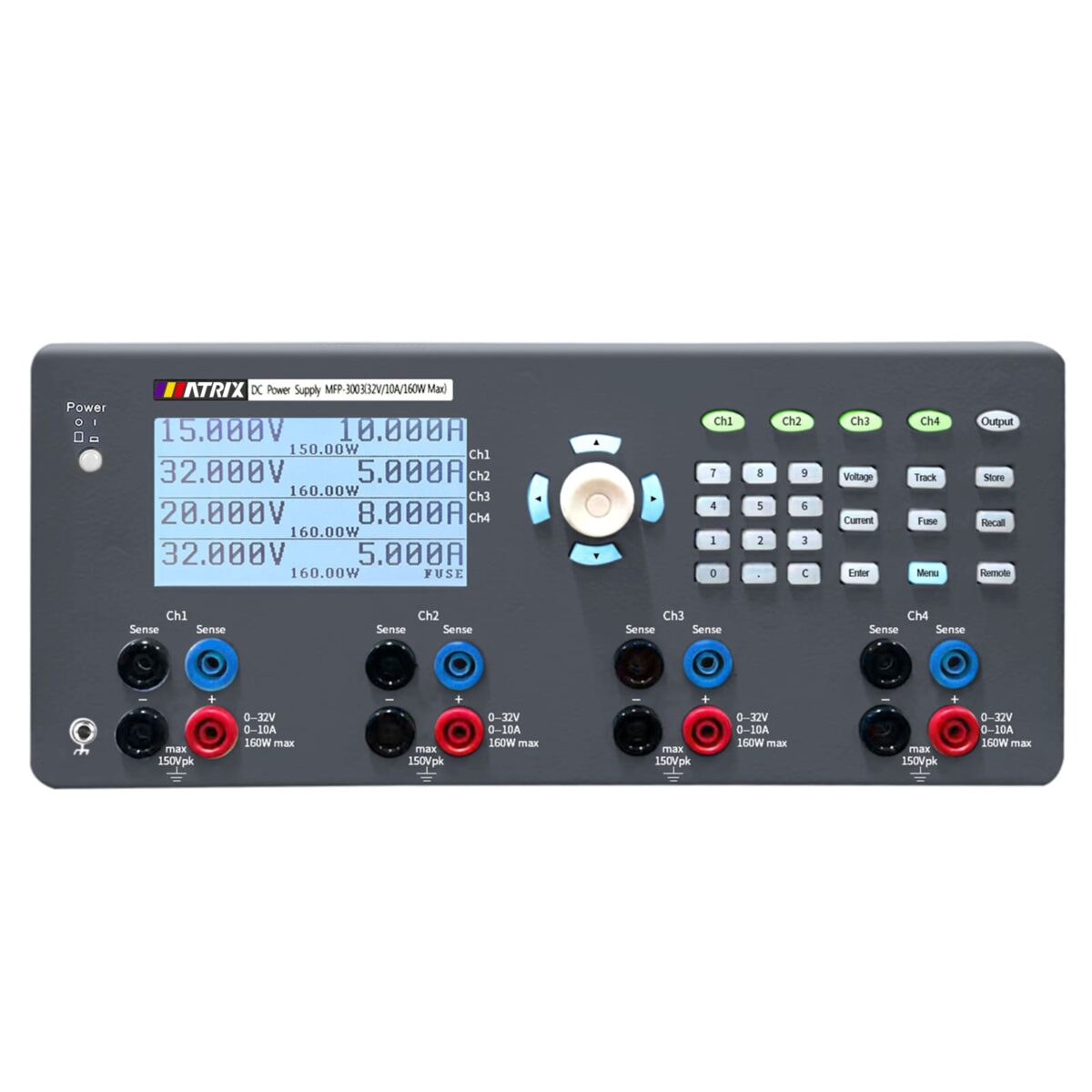

MFP-3000 Series 4 Channel Programmable DC Power Supply
MFP-3000 Series 4 Channel Programmable DC Power Supply can reach max output power 384W.Each channel has a rated maximum power of 160W,a maximum output voltage of 32V,and a maximum output current of 10A.Limits for all protection functions can be configured separately for each channel and the delay time of electronic fuses can be set.
Want a custom configuration?
- 4-channel and maximum total output power of 384W.
- Each channel has a rated maximum power of 160W, a maximum output voltage of 32V, and a maximum output current of 10A.
- List sequence output function.
- Synchronous output, in synchronous mode,if any parameter is changed,the corresponding parameters of other channels will also change proportionally.
- Electronic fuses. Limits for all protection functions can be configured separately for each channel,and the delay time of electronic fuses can be set.
- Simulate battery charging curve function.
- Remote voltage compensation function to ensure usage accuracy.
- All channels have overload and short circuit protection.
- OCP/OVP/OTP protection function.
- Widely used in laboratory and ATE applications.
| Model | MFP-3001 | |
| Rated input voltage | AC 110V/220V±10% | |
| Ouput | All channel outputs are currently isolated and ungrounded | |
| Rated output power | 160W*4CH | |
| Rated output voltage | 0-32V*4CH | |
| Rated output current | 0-10A*4CH | |
| Variable pressure mode | Linear power supply | |
| Maximum voltage when connected in series | 128V | |
| Maximum current when connected in parallel | 40A | |
| Load regulation rate | Voltage | ≤0.01 % + 2 mV |
| Current | ≤0.01 % + 250 μA | |
| Power supply regulation | Voltage | ≤0.01% + 2 mV |
| Current | ≤0.01% + 250 μA | |
| Set value resolution | Voltage | lmV |
| Current | < 1 A: 0.2mA; ≥ 1 A: 1 mA | |
| Setting accuracy
(25℃±5℃) |
Voltage | ≤0.05% + 5 mV |
| Current | ≤ 0.1% + 5 mA | |
| Readback value resolution | Voltage | 1mV |
| Current | < 1 A: 0.2mA; ≥ 1 A: 1 mA | |
| Readback accuracy
(25℃±5℃) |
Voltage | ≤0.05% + 5 mV |
| Current | ≤ 0.1% + 2 mA | |
| Ripple(20Hz-20MHz) | Voltage | ≤1.5 mV (RMS) |
| Current | ≤1 mA (RMS) | |
| Temperature | Operational
Environment |
5 to 40℃≤ 80% R.H |
| Storage
environment |
-20 to 70℃≤ 80% R.H | |
| Sense compensate | Maximum voltage compensation | 1V |
| Remote communication time | Handling | < 50 ms |
| Electronic fuse | Response time | < 10 ms |
| Fuse delay | 0 ms to 250 ms (10 ms step) | |
| Interface | Standard | RS-232+USB |
| Optional | LAN | |
| Size(W*H*D mm) | mm | 285 × 136 × 405 |
| Net weight | kg | 14kg |
