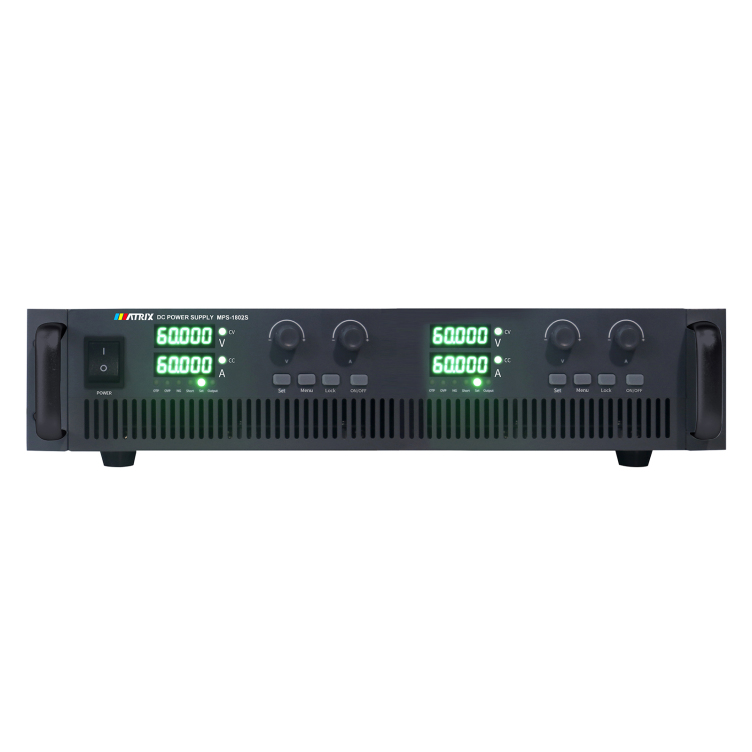

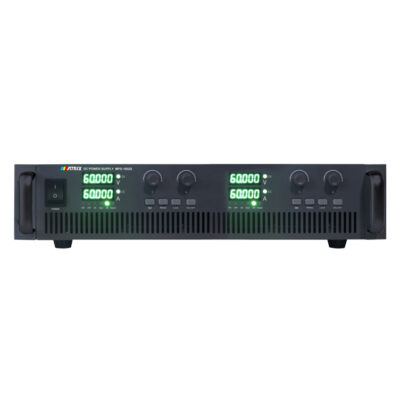

MPS-1802S Series Programmable DC Power Supply
MPS-1802S Series Programmable DC Power Supply has simultaneous five digit display of voltage and current.We have adoped PWM modulation and high gain amplification circuit design.Key components are imported to ensure long-term full load operation.We have remote voltage compensation function ensures usage accuracy.
Want a custom configuration?
- Simultaneous five digit display of voltage and current,precise and easy to use.
- Adopting PWM modulation and high gain amplification circuit design,stable and reliable.
- The panel has preset buttons that can preset voltage and current values.
- Complete protection functions: OVP、OCP、OTP、Short circuit protection.
- Key lock function.
- Key components are imported to ensure long-term full load operation.
- Remote voltage compensation function ensures usage accuracy.
| Model | Voltage | Current | Power | |
| MPS-1802S-30-60 | 0-30.000V | 0-60.000A | 1800W*2 | |
| MPS-1802S-60-30 | 0-60.000V | 0-30.000A | 1800W*2 | |
| MPS-1802S-100-18 | 0-100.00V | 0-18.000A | 1800W*2 | |
| MPS-1802S-150-12 | 0-150.00V | 0-12.000A | 1800W*2 | |
| MPS-1802S-200-9 | 0-200.00V | 0-9.0000A | 1800W*2 | |
| MPS-1802S-300-6 | 0-300.00V | 0-6.0000A | 1800W*2 | |
| AC input | Single phase | AC220V±10%，50Hz | ||
|
DC output |
Output voltage | 0V – rating | ||
| Output current | 0A – rating | |||
| Output power | 0W – rating | |||
| Load regulation | Voltage | ≤0.1%F.S+0.1%F.S | ||
| Current | ≤0.1%F.S+0.1%F.S | |||
| Setting value
accuracy |
Voltage | ≤0.1%F.S+0.1%F.S | ||
| Current | ≤0.1%F.S+0.1%F.S | |||
| Readback value
accuracy |
Voltage | ≤0.1%F.S+0.1%F.S | ||
| Current | ≤0.1%F.S+0.1%F.S | |||
| Ripple(20Hz-20MHz） | Voltage | Vrms≤0.2%F.S+50mV | ||
| Dynamic response time(10% -90% load) | ≤5mS | |||
| Display method | 4 and a half digit meter (LED digital tube display) | |||
| Display resolution | Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A | |||
| Interface | RS232/RS485 | |||
| Functional protection | OVP, OCP, OTP, Short circuit protection | |||
| Heat dissipation method | Adopting PWM speed regulating fan, air-cooled | |||
| Operating environment | Temperature 0 ℃ -40 ℃; Humidity 10% -85% RH | |||
| Environment | Temperature -20 ℃ -70 ℃; Humidity 10% -90% RH | |||
| Special requirements | Other specifications and models can be customized | |||
| Size（mm) | 430×420×88（W*D*H mm） | |||
| Weight（kg) | 11KG | |||
