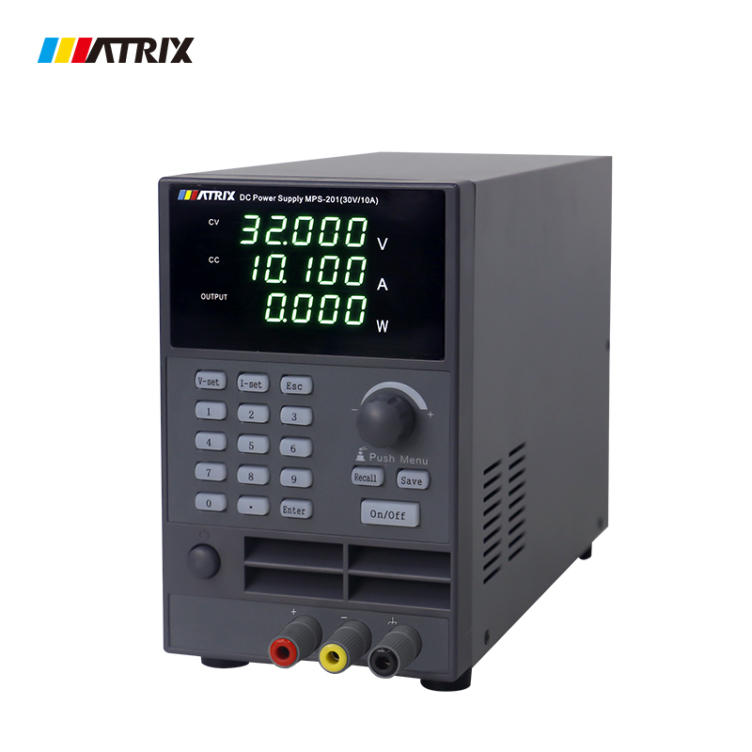

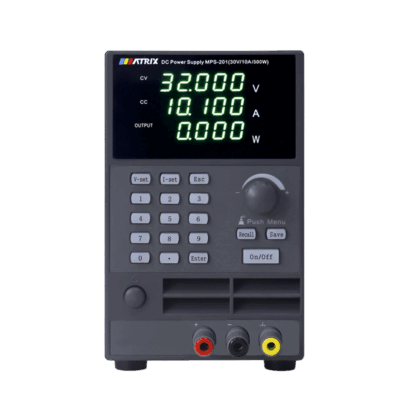

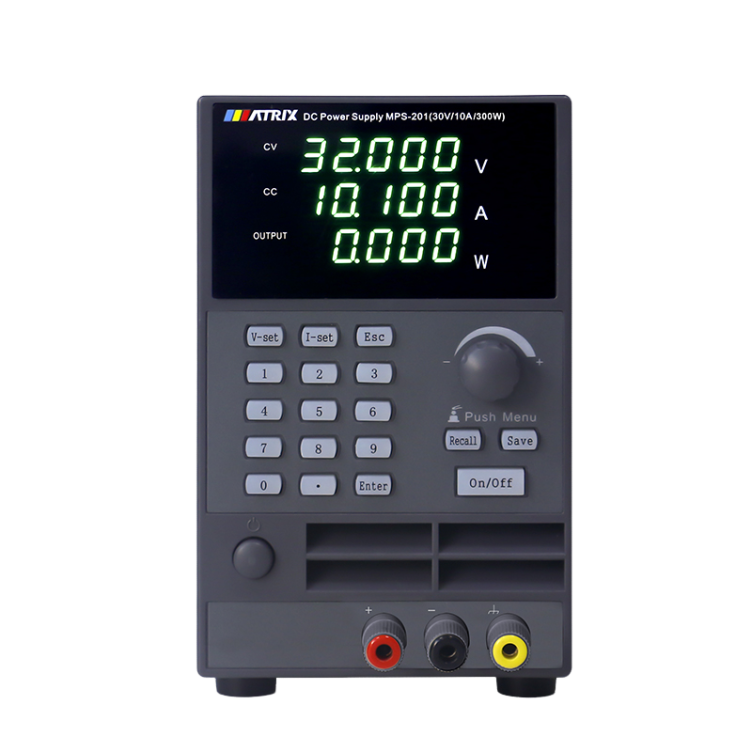

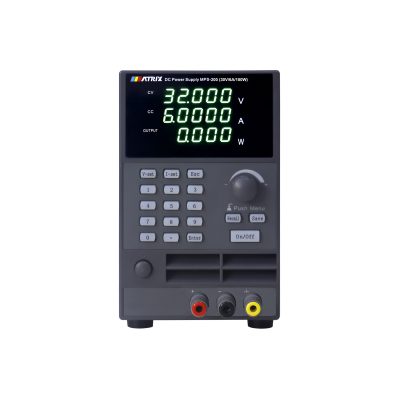

MPS-200 High Precision Programmable DC Power Supply

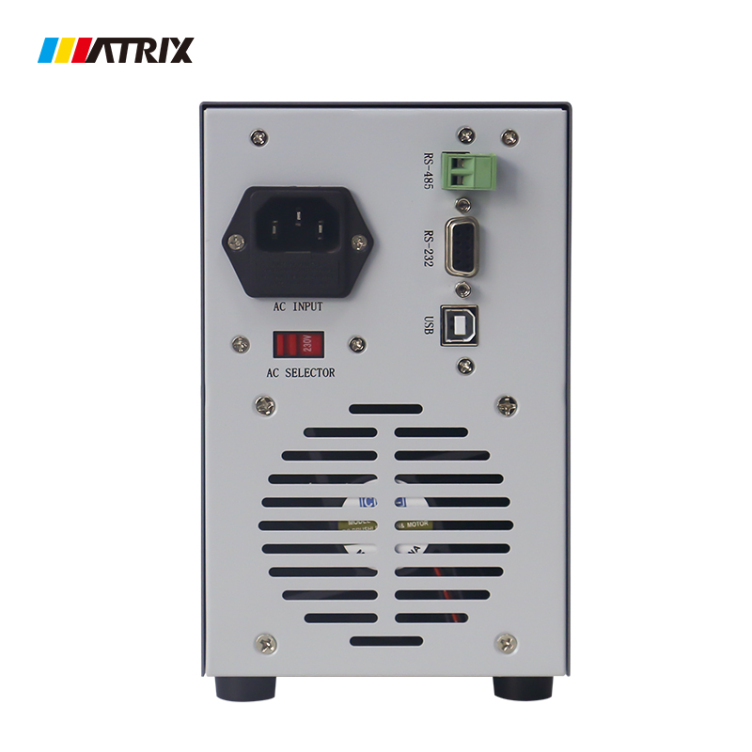

The MPS-200 series is a new high-precision programmable switching DC power supply, with a novel appearance, light weight, small size, simple operation, and great convenience for users. It has a high cost-effectiveness and comes standard with RS232, RS485, and USB communication interfaces. It can be widely used in electronic product development, component testing, communication industry, laboratories, research institutions, etc.
Want a custom configuration?
● Resolution of voltage 1mV and current 0.1mA, high-precision display
● Set voltage and current through two methods: digital keyboard and knob
● Nine sets of voltage and current storage and retrieval functions, convenient and fast
● Output switch control, easy to control
● Intelligent temperature controlled fan, extremely practical
● The knob adopts a coding switch, which is convenient and fast to use, and has anti misadjustment function
● LIST output function
● Voltage and current range setting function
● OVP/OCP setting function
● One click initialization function
| Model | MPS-200 | MPS-201 | MPS-202 | |
| Rated input voltage | AC220V/110V±10% | |||
| Rated output voltage | 0-32V | 0-60V | ||
| Rated output current | 0-6A | 0-10A | 0-5A | |
| Load regulation rate | Voltage | ≤0.02%+5mV | ≤0.02%+8mV | ≤0.02%+5mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Line regulation rate | Voltage | ≤0.02%+5mV | ≤0.02%+8mV | ≤0.02%+5mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Setting resolution | Voltage | 1mV | ||
| Current | 0.1mA | |||
| Read back resolution | Voltage | 1mV | ||
| Current | 0.1mA | |||
| Setting accuracy (25°℃±5°℃) | Voltage | ≤0.1%+8mV | ||
| Current | ≤0.2%+2mA | |||
| Read back accuracy (25C±5C) | Voltage | ≤0.1%+8mV | ||
| Current | ≤0.2%+2mA | |||
| Ripple and noise (25C±5℃) | Voltage | <8mVmms | <8mVmms | <10mVmms |
| Current | <3mArms | <5mArms | <3mArms | |
| temperature coefficient | Operating | 0to 40°C≤80R.H | ||
| Storage | -15to 70C≤80R.H | |||
| Machine size(W*H*D) | mm | 111*170*250 | ||
| Net weight | kg | 2KG | ||
