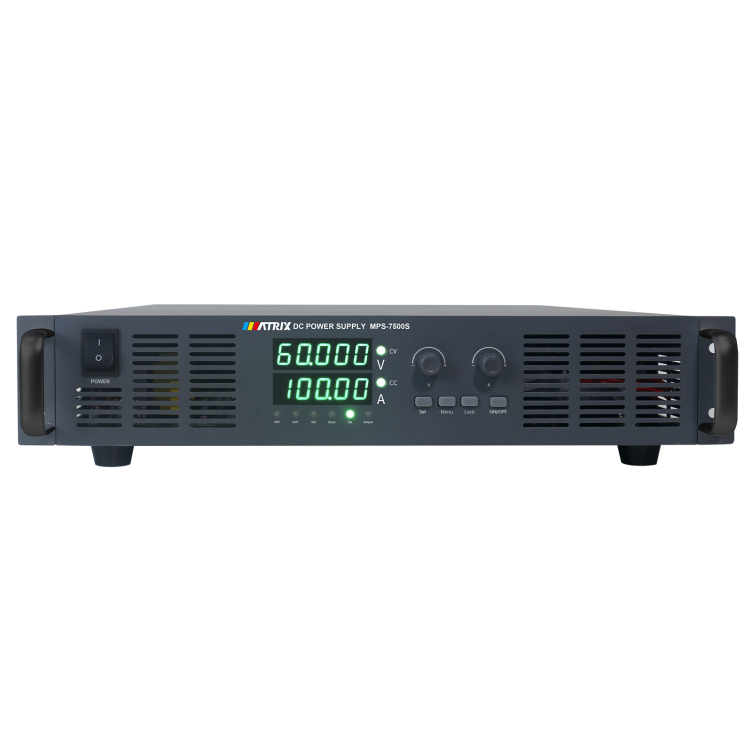

MPS-7500S Series Programmable DC Power Supply
MPS-7500S Series Programmable DC Power Supply has simultaneous five digit display of voltage and current.We have adoped PWM modulation and high gain amplification circuit design.Key components are imported to ensure long-term full load operation.We have remote voltage compensation function ensures usage accuracy.
Want a custom configuration?
- Simultaneous five digit display of voltage and current,precise and easy to use.
- Adopting PWM modulation and high gain amplification circuit design, stable and reliable.
- The panel has preset buttons that can preset voltage and current values.
- Complete protection functions: OVP、OCP、OTP、Short circuit protection.
- Key lock function.
- Key components are imported to ensure long-term full load operation.
- Remote voltage compensation function ensures usage accuracy.
Model Voltage Current Power MPS-7500S-30-250 0-30.000V 0-250.00A 7500W MPS-7500S-60-125 0-60.000V 0-125.00A 7500W MPS-7500S-100-75 0-100.00V 0-75.000A 7500W MPS-7500S-150-50 0-150.00V 0-50.000A 7500W MPS-7500S-200-36 0-200.00V 0-36.000A 7200W MPS-7500S-300-25 0-300.00V 0-25.000A 7500W MPS-7500S-600-12 0-600.00V 0-12.000A 7200W MPS-7500S-1500-5 0-1500.0V 0-5.0000A 7500W AC input Three-phase AC380V±10%，50Hz DC output
Output voltage 0V – rating Output current 0A – rating Output power 0W – rating Load regulation Voltage ≤0.1%F.S+0.1%F.S Current ≤0.1%F.S+0.1%F.S Setting value accuracy
Voltage ≤0.1%F.S+0.1%F.S Current ≤0.1%F.S+0.1%F.S Readback value accuracy
Voltage ≤0.1%F.S+0.1%F.S Current ≤0.1%F.S+0.1%F.S Ripple(20Hz-20MHz） Voltage Vrms≤0.2%F.S+50mV Dynamic response time(10% -90% load) ≤5mS Display method 4 and a half digit meter (LED digital tube display) Display resolution Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A Interface RS232/RS485 Functional protection OVP, OCP, OTP, Short circuit protection Heat dissipation method Adopting PWM speed regulating fan, air-cooled Operating environment Temperature 0 ℃ -40 ℃; Humidity 10% -85% RH Environment Temperature -20 ℃ -70 ℃; Humidity 10% -90% RH Special requirements Other specifications and models can be customized Size（mm) 430×500×88（W*D*H mm） Weight（kg) 16KG
