MPS-S-3 Series

•Output range: CH1, CH2: 0~150V; Output current range: CH1, CH2: 0~10A / CH3: 5V/3A (fixed)
•CH1 and CH2 are equipped with independent output switches for convenient use
•Current can be easily preset without short-circuiting, revolutionizing your operation experience
•Equipped with a power-on soft-start circuit design, featuring low inrush current and high practicality
•One-click series/parallel setting, directly displaying the voltage and current values after series/parallel connection for intuitive reading

Want a custom configuration?
Contact Us
Share your love

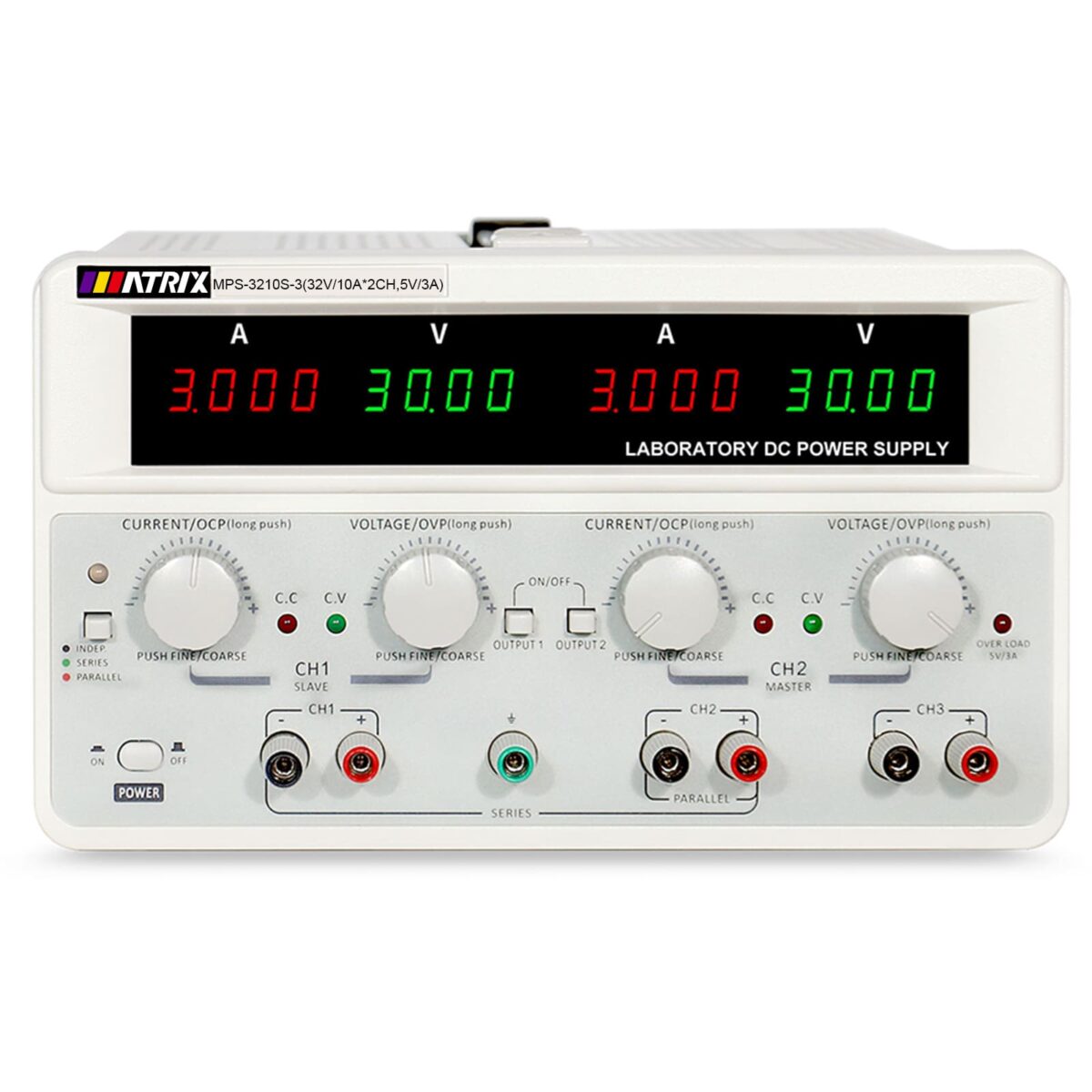

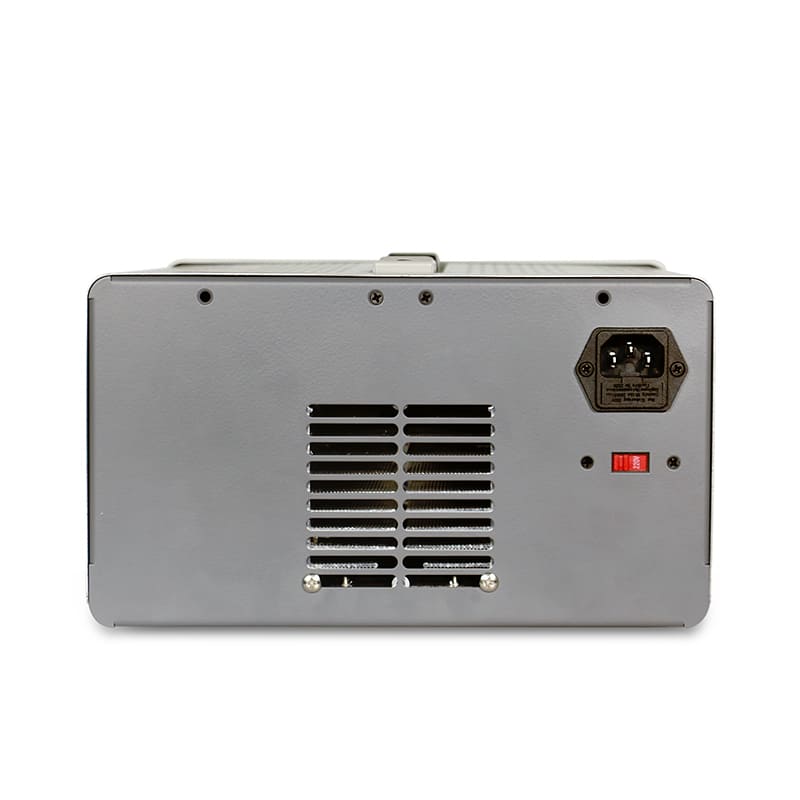

The MPS-S-3 Series 3-channel DC power supplies include models such as MPS-3206S-3, MPS-3210S-3, MPS-6005S-3, MPS-8003S-3, and MPS-1502S-3. Among them, CH1 and CH2 allow independent output adjustment: different models have rated voltage ranges of 0~32V, 0~60V, 0~80V, and 0~150V, with rated current ranges of 0~2A, 0~3A, 0~5A, 0~6A, and 0~10A; CH3 provides a fixed 5V/3A output.The series features high-precision display (voltage resolution 10mV, current resolution 1mA), one-click series/parallel setting, 110V/220V input voltage switching, power-on state memory, buzzer switch, one-click factory reset, OVP/OCP protection, and a start-up slow-start circuit.In terms of performance, the voltage load regulation ranges from <0.1%+5mV to <0.1%+10mV, and the current load regulation ranges from <0.2%+3mA to <0.2%+5mA; the voltage line regulation ranges from <0.1%+5mV to <0.1%+10mV; the voltage ripple and noise is 10mVrms.It supports independent output switch control and current preset (no short-circuit required), with standard or optional RS-232, RS-485, and USB communication interfaces. The operating environment temperature is 0~40℃ (≤80% RH), and the storage environment temperature is -15~70℃ (≤80% RH). The dimensions are approximately 219×95×300mm or 250×150×268mm, with a weight of 4.5kg, and a 3-year warranty is provided.
Model MPS-3206S-3 MPS-3210S-3 MPS-6005S-3 MPS-8003S-3 MPS-15H02S-3
Channel CH1/CH2 CH3 CH1/CH2 CH3 CH1/CH2 CH3 CH1/CH2 CH3 CH1/CH2 CH3
Rated output voltage 0~32V 5V 0~32V 5V 0~60V 5V 0~80V 5V 0~150V 5V
Rated output current 0~6A 3A 0~10A 3A 0~5A 3A 0~3A 3A 0~2A 3A
Rated output power 399W 655W 615W 495W 615W
Load regulation rate Voltage <0.1%+5mV <0.1%+10mV <0.1%+5mV <0.1%+10mV <0.1%+10mV
Current <0.2%+3mA <0.2%+5mA <0.2%+3mA <0.2%+3mA <0.2%+3mA
Line regulation rate Voltage <0.1%+5mV <0.1%+10mV <0.1%+5mV <0.1%+10mV <0.1%+10mV
Current <0.2%+3mA <0.2%+5mA <0.2%+3mA <0.2%+3mA <0.2%+3mA
Set value accuracy Voltage ≤0.1%+1digit ≤0.1%+1digit ≤0.1%+2digits ≤0.1%+2digits ≤0.1%+2digits
Current ≤0.2%+3mA ≤0.2%+5mA ≤0.2%+3mA ≤0.2%+3mA ≤0.2%+3mA
Readback value accuracy Voltage ≤0.1%+1digit ≤0.1%+1digit ≤0.1%+2digits ≤0.1%+1digit ≤0.1%+1digit
Current ≤0.2%+3mA ≤0.2%+5mA ≤0.2%+3mA ≤0.2%+3mA ≤0.2%+3mA
Readback resolution Voltage 10mV 10mV 10mV 10mV 10mV
Current 1mA 1mA 1mA 1mA 1mA
Ripple and Noise Voltage ≤10mVrms ≤10mVrms ≤10mVrms ≤10mVrms ≤10mVrms
Current ≤5mArms ≤5mArms ≤5mArms ≤5mArms ≤5mArms
OVP 0~32V±0.2%FS 0~32V±0.2%FS 0~62V±0.2%FS 0~80V±0.2%FS 0~150V±0.2%FS
Max voltage 32V±0.2% 32V±0.2% 62V±0.2% 80V±0.2% 150V±0.2%
OCP 0~6.1A±0.2%FS 0~10A±0.2%FS 0~5.1A±0.2%FS 0~3.1A±0.2%FS 0~2.1A±0.2%FS
Max current 6.1A±0.2% 10A±0.2% 5.1A±0.2% 3.1A±0.2% 2.1A±0.2%
Temperature Operational environment 0~40℃≤80%RH
Temperature Storage environment -15~70℃≤80%RH
Size (WHD) 219*95*300 mm
Weight kg 4.5
Standard Accessories:Power Cable*1PC, Test Lead*3PC, User Manual
