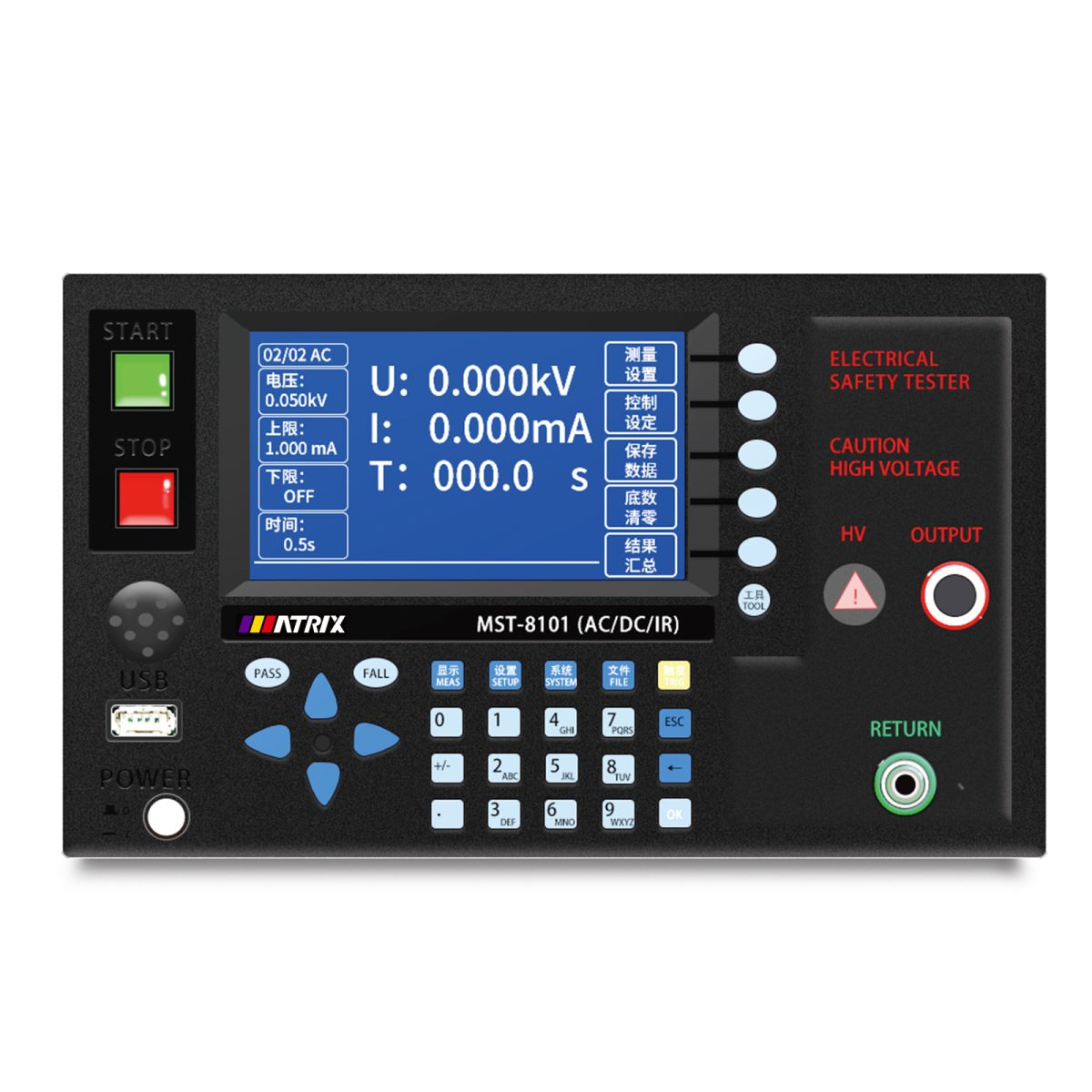

MST-8101/8103 Series Programmable Electrical Safety Tester

MST-8101/8103 Series Programmable Electrical Safety Tester

•4.3-inch TFT color screen display, clear at a glance
•105 test files can be compiled, and 25 test steps can be set for each file
•Current resolution up to 0.1μA,accurate
•Automatic discharge function after the test is over
•Up to 10GΩ insulation resistance test range
•100VA capacity

Want a custom configuration?
Contact Us
Share your love
As a high-reliability safety testing device launched by MATRIX TECHNOLOGY, the MST-8101/8103 series programmable electrical safety testers are specifically designed for industrial-grade electrical withstand voltage, insulation performance, and open/short circuit detection. They cover the safety compliance testing needs of various fields such as electronic components, power equipment, and instruments. The MST-8101 focuses on high-precision AC withstand voltage testing, while the MST-8103 further supports a three-in-one function of AC/DC withstand voltage and insulation resistance testing. Equipped with a wide voltage range of 0.050kV-7.200kV and an ultra-high current resolution of 0.1uA, they accurately meet international testing standards such as UL and IEC, providing authoritative guarantees for product safety verification. The device integrates multiple safety mechanisms including forced discharge, ground current detection, and arc detection, offering real-time protection during high-voltage output to eliminate the risks of electric shock and equipment damage, balancing testing professionalism with operational safety.

Intelligent and Efficient Testing Solution

This series of testers features a 4.3-inch TFT color LCD screen with an intuitive and easy-to-understand interface. It supports programmable storage of 105 test files, each capable of setting 25 consecutive test steps to meet the automated testing needs of complex scenarios. Equipped with rich interfaces such as RS232C, USB, and HANDLER, it enables computer remote control, data export, and quick import of test plans, seamlessly connecting production line and laboratory scenarios. Parameters such as voltage rise/fall time and test delay can be precisely adjusted (0.1s-999.9s). Combined with the optional multi-channel module, continuous testing of multiple measurement points can be completed without repeated wiring, significantly improving testing efficiency. With a compact design (215×143×405mm) and a weight of only about 12kg, it balances portability and stability, making it an ideal testing partner for electronic manufacturing, quality inspection, R&D verification, and other scenarios.
Model MST-8101 MST-8103
Function Description AC AC/DC/IR
Withstand voltage test
lose
Out
Electricity
Pressure		 AC voltage range 0.050kV—5.000kV 0.050kV—5.000kV
Voltage waveform Sine wave Sine wave
Distortion <3% <3%
working frequency 50、60Hz optional 50、60Hz optional
Frequency accuracy ±1% ±1%
Output Power 100VA(20mA) 100VA(20mA)
Voltage regulation rate ±(1.0%+50V)(rated power) ±(1.0%+50V)(rated power)
DC voltage range 0.050 kV—6.00kV
Signal source frequency – 600Hz
Output Power – 50VA(10mA)
Voltage regulation rate ±(1.0%+100V)(rated power)
Voltage resolution 1V 1V
Voltage test accuracy ±2% ±2%
Voltage generation method DDS signal source plus class AB power amplifier DDS signal source plus class AB power amplifier
Electricity
flow
Measurement
test Fan
Surround		 AC Current range 0.001mA-20.00 mA 0.001mA-20.00 mA
Short circuit current
(momentary)		 >40   mA >40   mA
Current resolution 0.001 mA 0.001 mA
Current accuracy ±(2%of reading+2 words) ±(2%of reading+2 words)
Actual current OFF-0.001 mA-20 mA OFF-0.001 mA-20 mA
DC Current range 0.1uA-10.00mA
Current accuracy ±(2%reading+2 digits)
Discharge function Automatic discharge after the test(DCW)
Insulation resistance test(MST-8103 only)
The output voltage 0.050V-1.000kV
Voltage resolution 1V
Voltage test accuracy ±2%
Maximum output current 10mA
Maximum output power 10VA(1000V/10mA)
Output instantaneous short-circuit current >20mA
Load Regulation ≤1%(rated power)
Ripple(1kV) ≤3%(1kV,no  load)
Discharge function Automatic discharge after the test
Resistance measurement range 0.1MΩ-10GQ
Resistance measurement accuracy Voltage<500V:02MΩ~1GQaccuracy. [±10%reading+5words]1GΩ~10GQaccuracy. [±20%reading+5words]
Voltage>500V:02MΩ~1GQaccuracy:±[3%reading+5words]1GΩ~10GQaccuracy:±7%reading+5words]
Arc detection MST-8101 MST-8103
Measuring range AC、DC AC:1mA-20mA (9 gears, fine-tuning) AC、DC:1mA-20mA(9 gears, fine-tuning)
Comparators
Discrimination method Window comparator mode l at the ON: When I at <lx <l on, the PASS; when lx is ≤ l or under lx is ≥ l on, FAIL (article items | at <l on)I down OFF: when lx< I up, PASS; when lx ≥ l up, FAIL; the insulation resistance judgment method is the same as above
Capping current I on AC、DC AC:0.001mA-20mA AC:0.001mA-20mA         DC:0.1uA-10mA
Current upper limit
setting I under		 AC、DC AC:0.001mA-20mA AC:0.001mA-20mA         DC:0.1uA-10mA
Resistance upper limit setting OFF-0.2MΩ-10GΩ
Resistance lower limit setting 0.2MΩ-10GQ
Parameter setting
Voltage rise time 0.1s-999.9s
Voltage drop time 0s-999.9s,(only after the withstand voltage PASS)
Voltage waiting time 0.3s-999.9s(only DC withstand voltage, and meet the rise time +test time >waiting time)
Test time setting 0.3s-999.9s(when TIMER ON)
Time accuracy ±(0.2%setting value±0.1s)
Protocol SCPI, Modbus
storage 105 test files can be programmed, and 25 test steps can be set for each file
interface HANDLER,SINGAL,RS232C,RS485(optional)
Size(W*H*D)    mm 215*143*405(without terminal)
weight   kg 12
