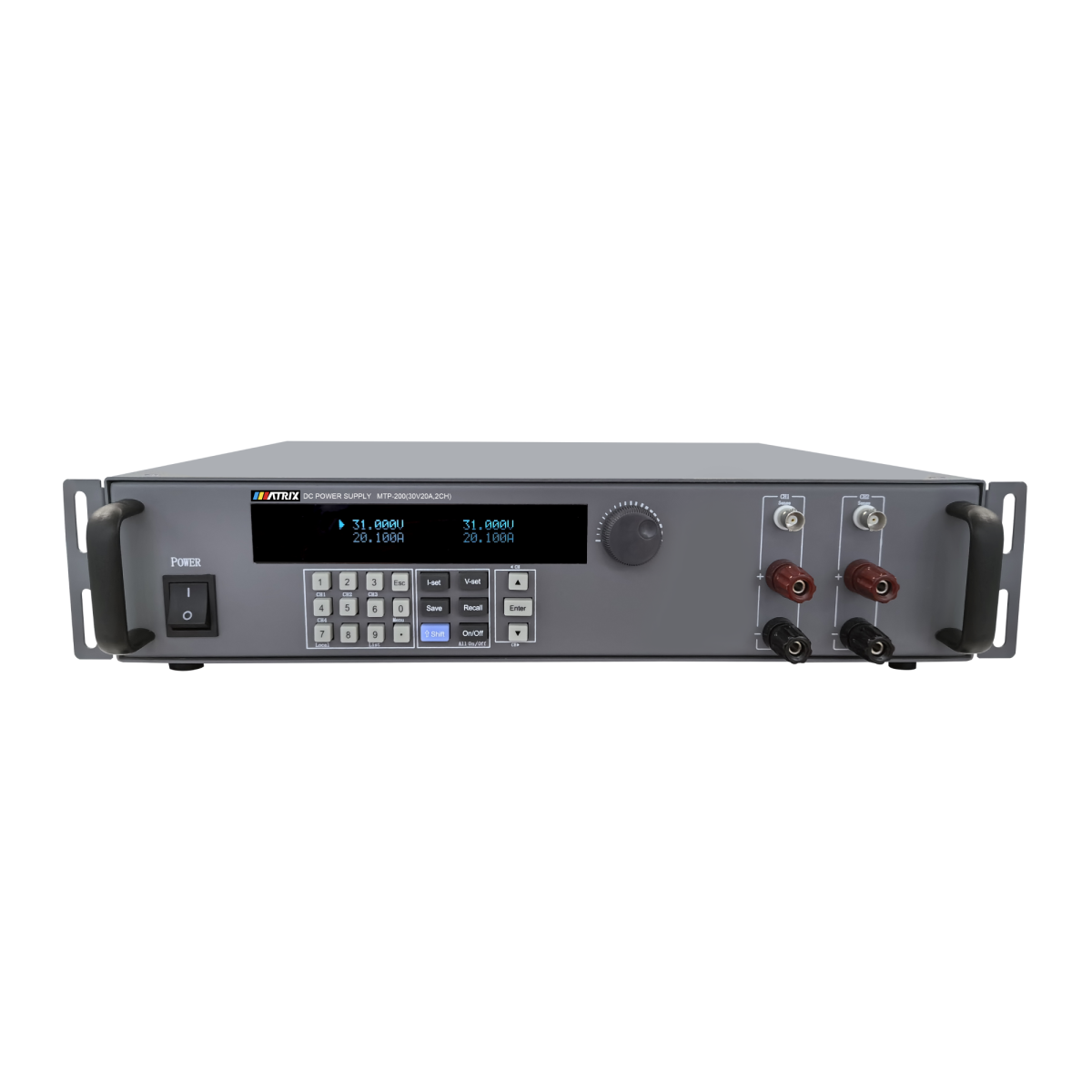

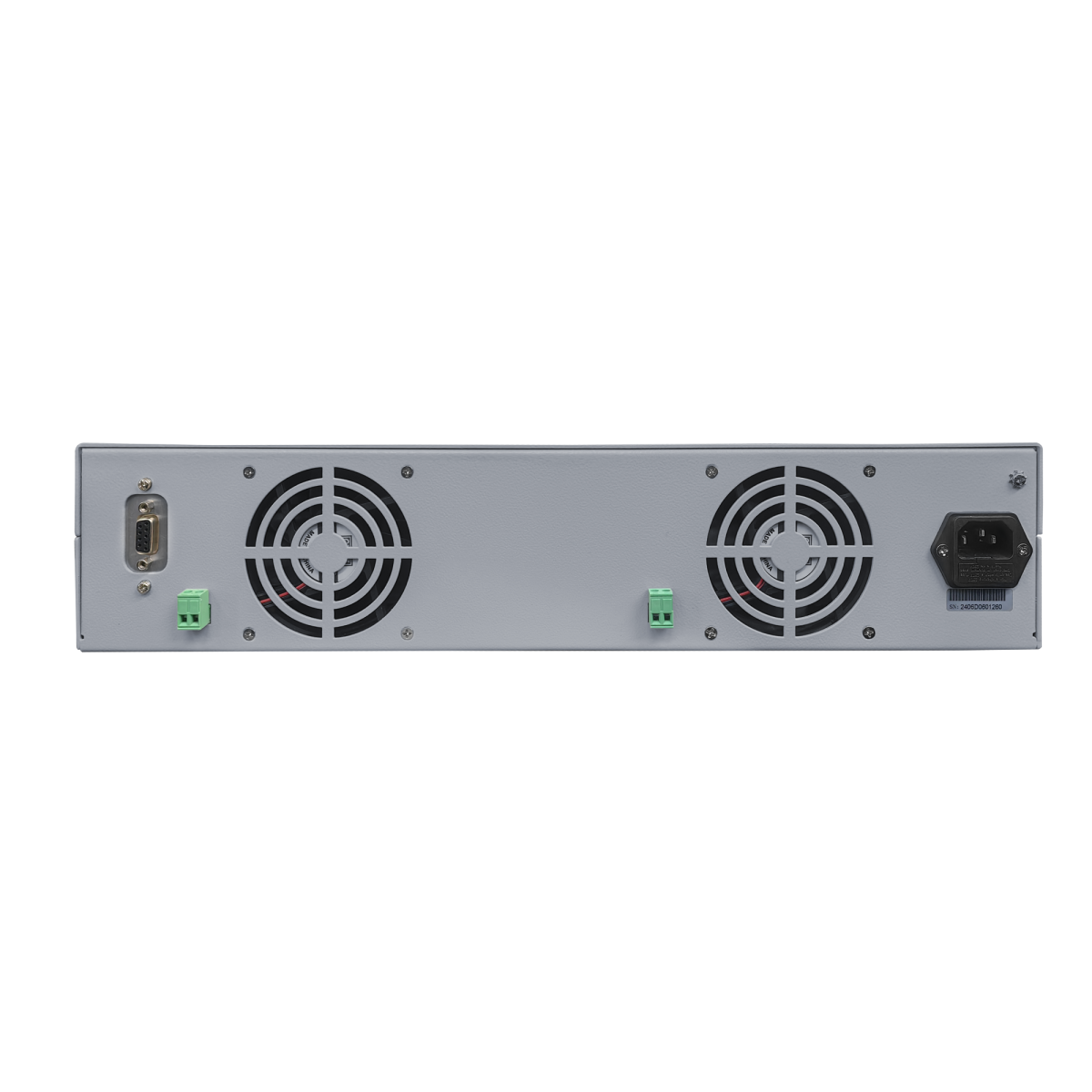

MTP-200 series two-way programmable DC power supply
The MTP-200 series two channel DC power supply is a new generation of high-quality programmable DC power supply. Two channels independently regulate voltage and current. This series of products is equipped with RS232 communication interface, which has the characteristics of desktop and system, meeting the measurement requirements of different occasions. The host computer program can be edited through communication protocol, bringing great convenience to users’ use. It is a replacement product for ordinary programmable power supplies, with high cost-effectiveness advantages.
Want a custom configuration?
Main Features:
- There are two ways to set: voltage and current, using a numeric keypad and knob adjustment
- Resolution of 1mV voltage and 1mA current
- Two independent adjustable channels, isolated from each other
- Voltage compensation function ensures accuracy
- List sequence output function
- Standard 2U model
- Intelligent temperature controlled fan for a quieter usage environment
- 9 sets of preset storage functions
| Model | MTP-200 | MTP-201 | MTP-202 | MTP-203 | MTP-204 | MTP-205 | MTP-206 | |
| Rated output voltage | 0~30V*2CH | 0~30V*2CH | 0~60V*2CH | 0~60V*2CH | 0~80V*2CH | 0~150V*2CH | 0~15V*2CH | |
| Rated output current | 0~20A*2CH | 0~30A*2CH | 0~10A*2CH | 0~15A*2CH | 0~11A*2CH | 0~6A*2CH | 0~60A*2CH | |
| Rated output power | 1200W | 1800W | 1200W | 1800W | 1760W | 1800W | 1800W | |
| Rated input voltage | AC 220V/110V±10% | |||||||
| Voltage transformation method | Switching Mode Power Supply | |||||||
| Load regulation rate | Voltage | ≤0.1%+20mV | ||||||
| Current | ≤0.1%+5mA | |||||||
| Line regulation rate | Voltage | ≤0.1%+20mV | ||||||
| Current | ≤0.1%+5mA | |||||||
| Setting resolution | Voltage | 1mV | ||||||
| Current | 1mA | |||||||
| Settingaccuracy （25℃±5℃) | Voltage | ≤0.1%+10mV | ||||||
| Current | ≤0.3%+8mA | |||||||
| Read back resolution | Voltage | 1mV | ||||||
| Current | 1mA | |||||||
| Read back accuracy
（25℃±5℃) |
Voltage | ≤0.1%+10mV | ||||||
| Current | ≤0.3%+8mA | |||||||
| Temperature coefficient | Operating | 0 to 40℃≤85R.H. | ||||||
| Storage | -15 to 70℃≤85 R.H. | |||||||
| Machine size （W*H*D) | mm | 440*90*340 | ||||||
| Net weight | kg | 9 | ||||||
| Gross weight | kg | 11 | ||||||
