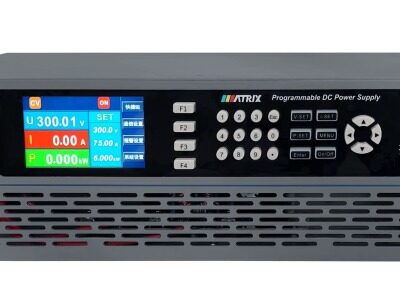

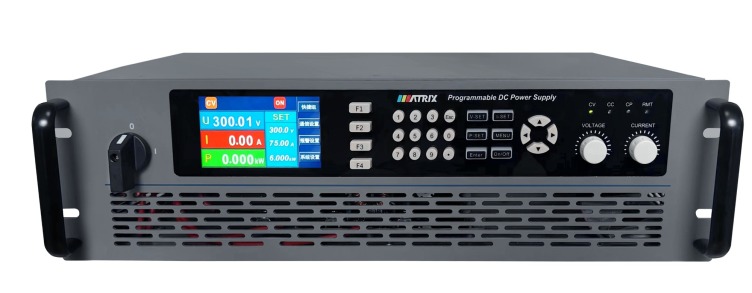

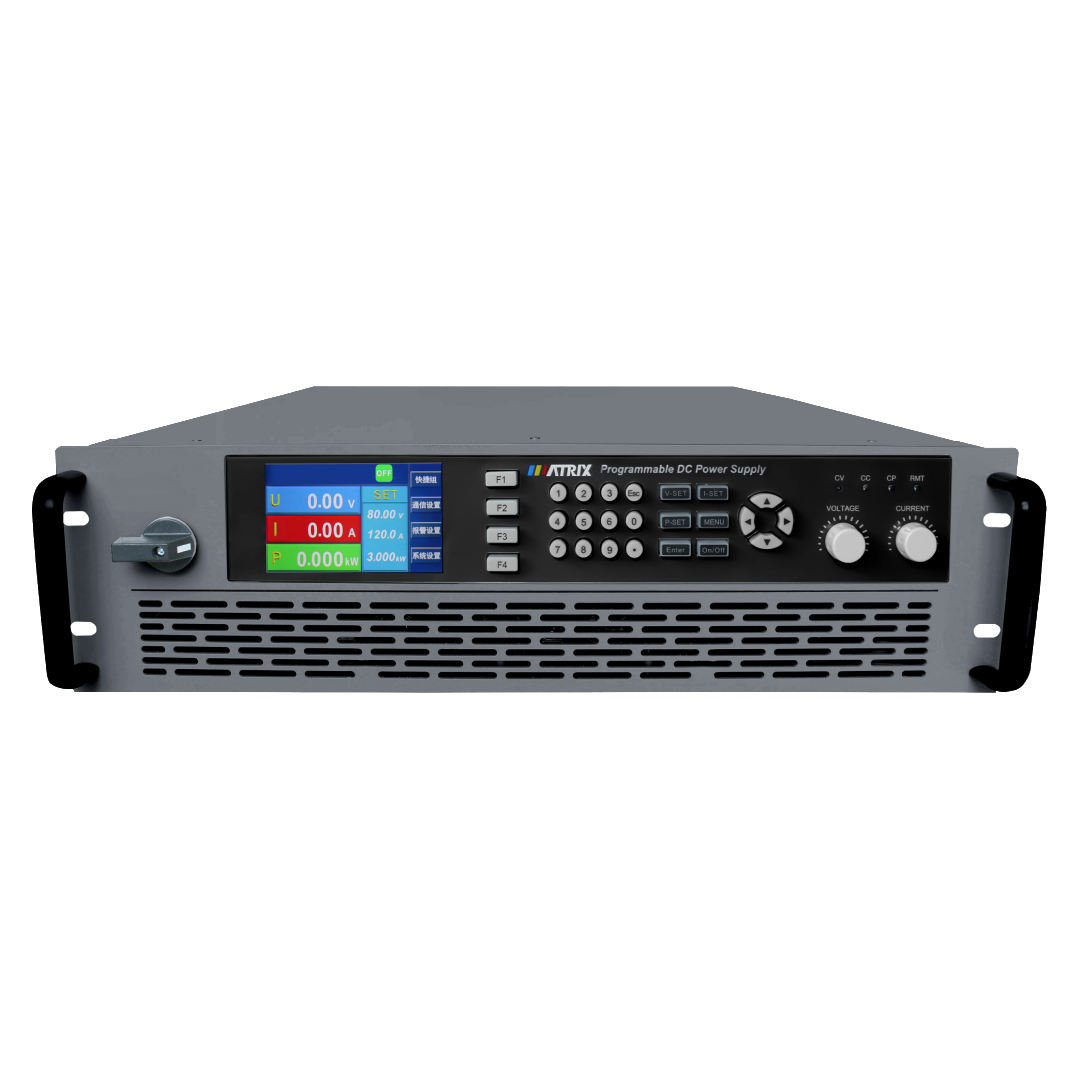

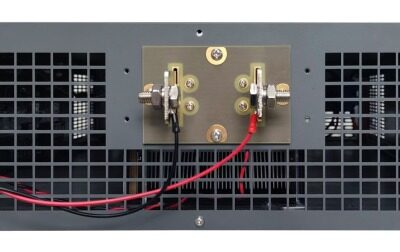

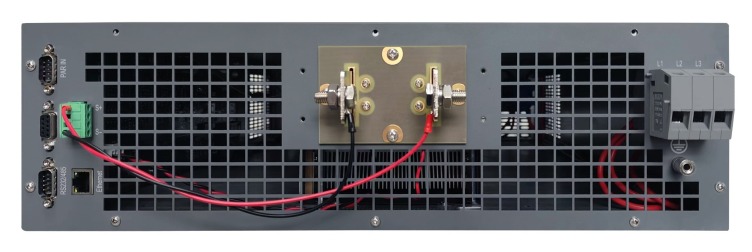

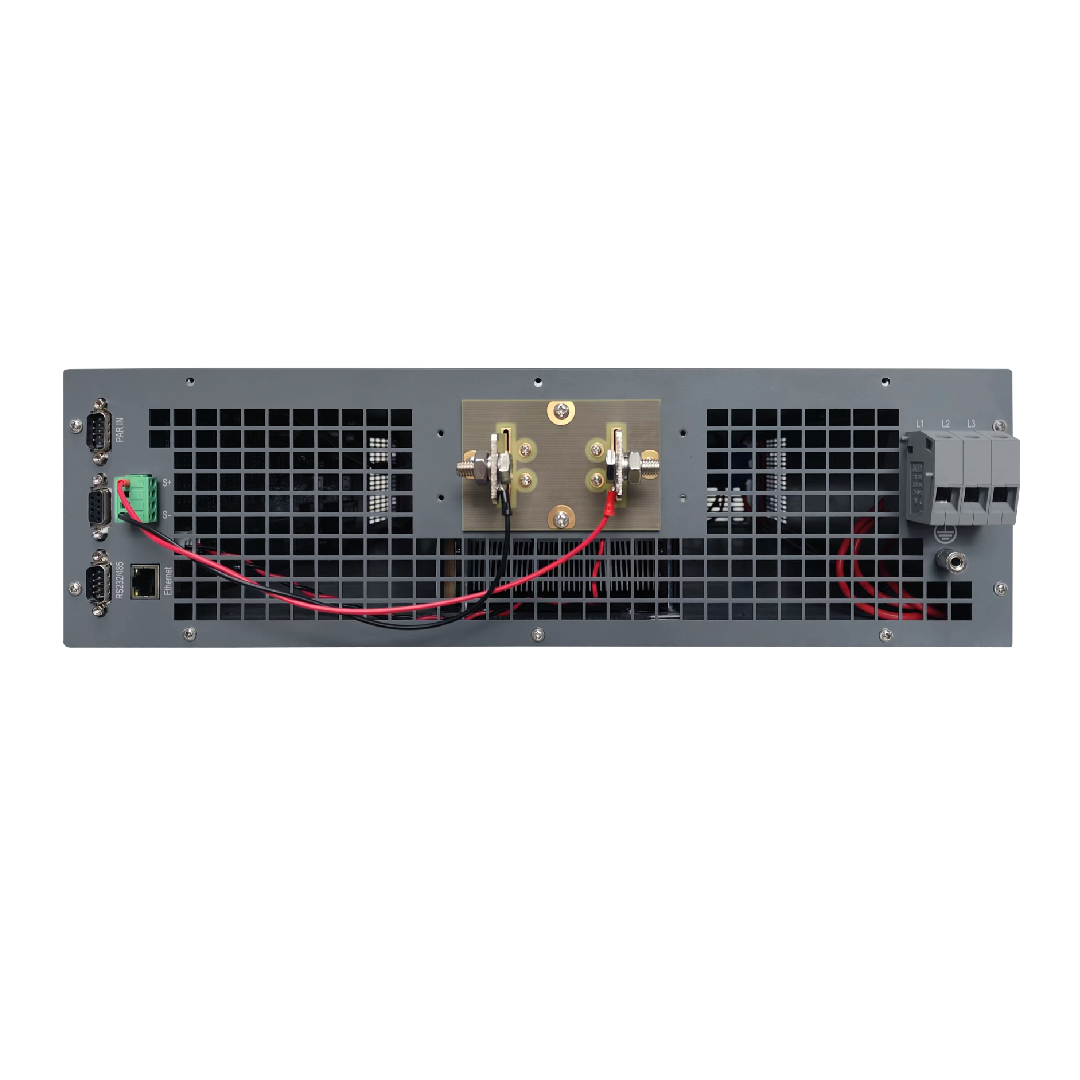

WPS-S Series Programmable DC Power Supply（high power）
•Output voltage: 0-2250V, output current: 0-510A, single-unit power: 18000W
•Built-in function generator
•Master slave Built-in ports parallel connection
•Power absorption function
Want a custom configuration?
The WPS-S series is a wide range programmable DC power supply controlled by a microprocessor, featuring exquisite appearance, small size, high performance, powerful functions, and simple operation. And it has excellent output performance indicators. This series of power supplies includes two basic models, 5KW and 18KW, with output voltages ranging from 0-2250V and output currents ranging from 0 to 510A. Up to 10 products of the same model can be connected in parallel, with single machine configuration of LIST function and function generator function to meet specific testing needs. It has multiple built-in interfaces, including RS232/RS485/CAN/USB/LAN communication interfaces.
| 5-6KW Series | (Weight:25kg | Size：482*660*132mm） | ||
| Model | Voltage | Current | Power | Ripple |
| WPS-5000S-80-170 | 0-80V | 0-170A | 5000W | 15mVrms |
| WPS-6000S-300-75 | 0-300V | 0-75A | 6000W | 40mVrms |
| WPS-6000S-500-40 | 0-500V | 0-40A | 6000W | 50mVrms |
| WPS-6000S-800-25 | 0-800V | 0-25A | 6000W | 75mVrms |
| WPS-6000S-1000-15 | 0-1000V | 0-15A | 6000W | 100mVrms |
| 10-12KW Series | (Weight:35kg | Size：482*660*132mm） | ||
| Model | Voltage | Current | Power | Ripple |
| WPS-10000S-80-340 | 0-80V | 0-340A | 10000W | 15mVrms |
| WPS-12000S-300-150 | 0-300V | 0-150A | 12000W | 40mVrms |
| WPS-12000S-500-80 | 0-500V | 0-80A | 12000W | 50mVrms |
| WPS-12000S-800-50 | 0-800V | 0-50A | 12000W | 75mVrms |
| WPS-12000S-1000-30 | 0-1000V | 0-30A | 12000W | 100mVrms |
| WPS-12000S-1500-25 | 0-1500V | 0-25A | 12000W | 150mVrms |
|
15-18KW Series |
(Weight:45kg |
Size：482*660*132mm） |
||
| Model | Voltage | Current | Power | Ripple |
| WPS-15000S-80-510 | 0-80V | 0-510A | 15000W | 15mVrms |
| WPS-18000S-300-225 | 0-300V | 0-225A | 18000W | 40mVrms |
| WPS-18000S-500-120 | 0-500V | 0-120A | 18000W | 50mVrms |
| WPS-18000S-800-75 | 0-800V | 0-75A | 18000W | 75mVrms |
| WPS-18000S-1000-45 | 0-1000V | 0-45A | 18000W | 100mVrms |
| WPS-18000S-1500-40 | 0-1500V | 0-40A | 18000W | 150mVrms |
| WPS-18000S-2250-25 | 0-2250V | 0-25A | 18000W | 225mVrms |
| Model | WPS-S Series | |
| Rated input | Three phase 380VAC ± 10% 47-63Hz | |
|
DC output |
Voltage | 0V~rated value |
| Current | 0A~rated value | |
| Power | 0W~rated value | |
| Efficiency | ≤92% | |
|
Setting value accuracy |
Voltage | ≤ ± (0.05%+0.04% FS) |
| Current | ≤ ± (0.15%+0.1% FS) | |
| Power | ≤ ± 0.8% FS | |
|
Readback value accuracy |
Voltage | ≤ ± (0.05%+0.04% FS) |
| Current | ≤ ± (0.15%+0.1% FS) | |
| Power | ≤ ± 0.8% FS | |
|
Source effect |
Voltage | ≤ 0.02% FS (± 10% △ UAC input) |
| Current | ≤ 0.05% FS (± 10% △ UAC input) | |
|
Load effect |
Voltage | ≤ 0.05% FS (0-100% load adjustment rate) |
| Current | 0.15% FS (load adjustment rate of 0-100% △ UDC) | |
| Specifications | Built in 15-pin D-Sub female plug, electrically isolated | |
|
Analog interface |
Signal range | 0~5V or 0~10V (switchable) |
| U/I/P accuracy | 0~10V: ≤ 0.2% FS 0~5V: ≤ 0.4% FS | |
| Dynamic response time(10% -90% load) | Load adjustment time | ≤ 2ms (load adjusted from 10 to 100%) |
| Output voltage rise time | Maximum 50ms (10~90% full scale) | |
| Functional protection | OTP, OVP, 0CP, 0PP, PF | |
| Interface | RS232/RS485/USB/LAN and other communication interfaces | |
| Parallel operation | Realizable, can connect up to 10 products (via shared bus) through real master-slave operation | |
| Operating environment | Working temperature: 0-50 ℃, humidity:<80%, storage temperature: -20~70 ℃, altitude:<2000m | |
| Standard Accessories: | LAN, Power Cable*1PC, RS-232, RS-485, SENSE, USB |
|---|---|
| Optional Accessories (Manufacturer installed only): | Analog Control |
