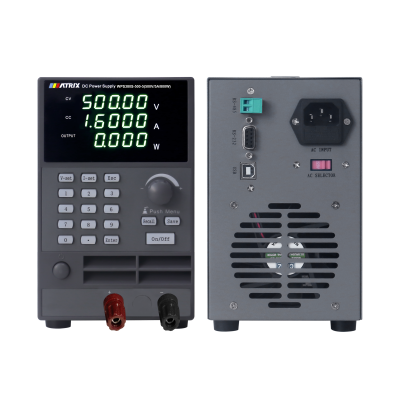

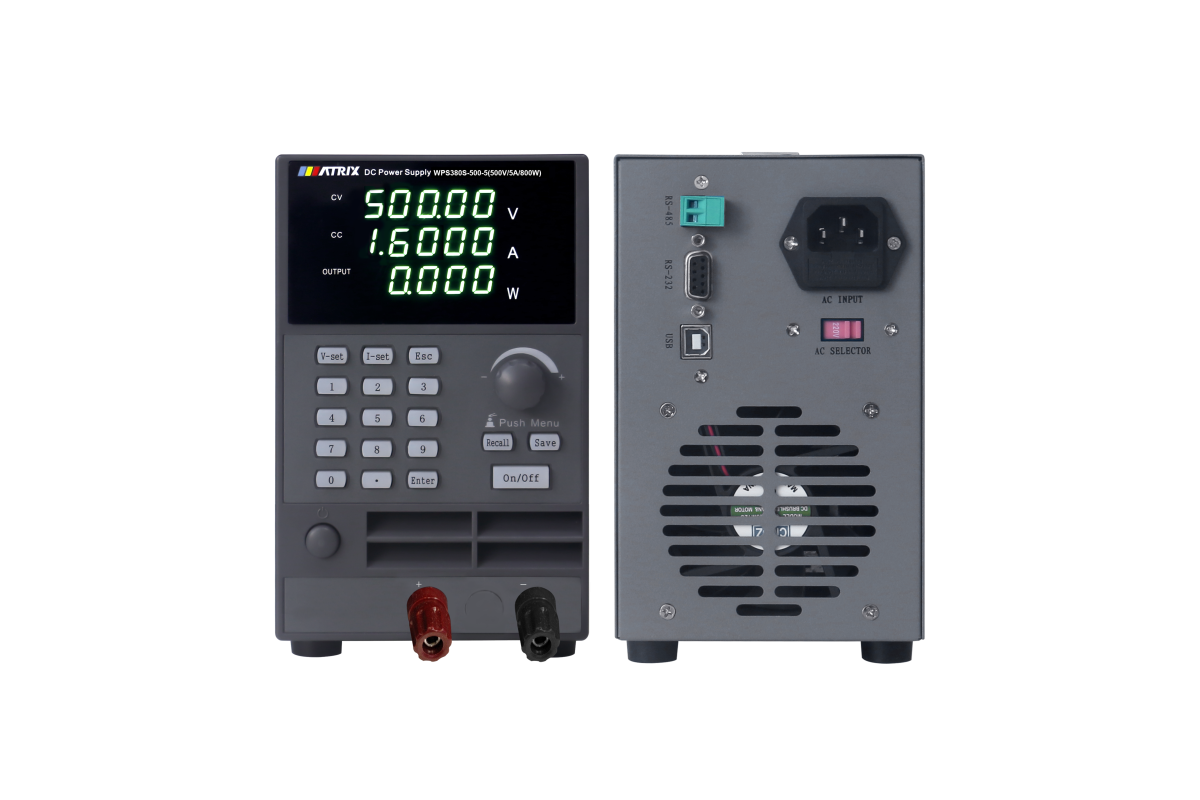

DC Power Supply WPS-380S Series
Applications
■ Prouduction line work bench routine test
■ Lab and institute
■ Electronic repair
■ Automated equipment integration testing
Want a custom configuration?
·It can save the output status and value before the last
shutdown
·The adjustable range of current and voltage can be set
·Nine sets of voltage and current storage and recall
functions,convenient and fast
·Restore factory settings with one click
·Output switch control for easy control
·Intelligent temperature controlled fan,extremely practical
·List output function
·OVP/OCP setting function
·Adjustable screen brightness
| Model | WPS380S-40-60 | WPS380S-80-30 | WPS380S-200-12.5WPS380S-360-7.5WPS380S-500-5 | WPS380S-800-3 | WPS380S-1000-2.5 | |||
| Rated output voltage | 0-40V | 0-80V | 0-200V | 0-360V | 0-500V | 0-800V | 0-1000V | |
| Rated output current | 0-60A | 0-30A | 0-12.5A | 0-7.5A | 0-5A | 0-3A | 0-2.5A | |
| Rated output power | 800W | 800W | 800W | 800W | 800W | 800W | 800W | |
| Load regulation rate |
Voltage | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+5mV | ≤0.02%+5mV | ≤0.02%+5mV | ≤0.02%+5mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Line regulation rate |
Voltage | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+8mV | ≤0.02%+5mV | ≤0.02%+5mV | ≤0.02%+5mV | ≤0.02%+5mV |
| Current | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | ≤0.02%+5mA | |
| Setting resolution |
Voltage | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV |
| Current | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | |
| Read back resolution |
Voltage | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV | 1mV |
| Current | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | |
| Setting accuracy
(25℃±5℃) |
Voltage | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+10mV | ≤0.1%+10mV | ≤0.1%+10mV | ≤0.1%+10mV |
| Current | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | |
| Read back accuracy (25℃±5℃) |
Voltage | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+8mV | ≤0.1%+10mV | ≤0.1%+10mV | ≤0.1%+10mV | ≤0.1%+10mV |
| Current | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | ≤0.2%+2mA | |
| Ripple and noise (25℃±5℃) |
Voltage | <8mVms | <8mVms | <8mVms | <10mVms | <10mVms | <10mVms | <10mVms |
| Current | <5mAms | <5mAms | <5mAms | <3mAms | <3mAms | <3mAms | <3mAms | |
| Temperature coefficient |
Operating | Oto40℃≤80R.H. | ||||||
| Storage | -15to70℃≤80R.H | |||||||
