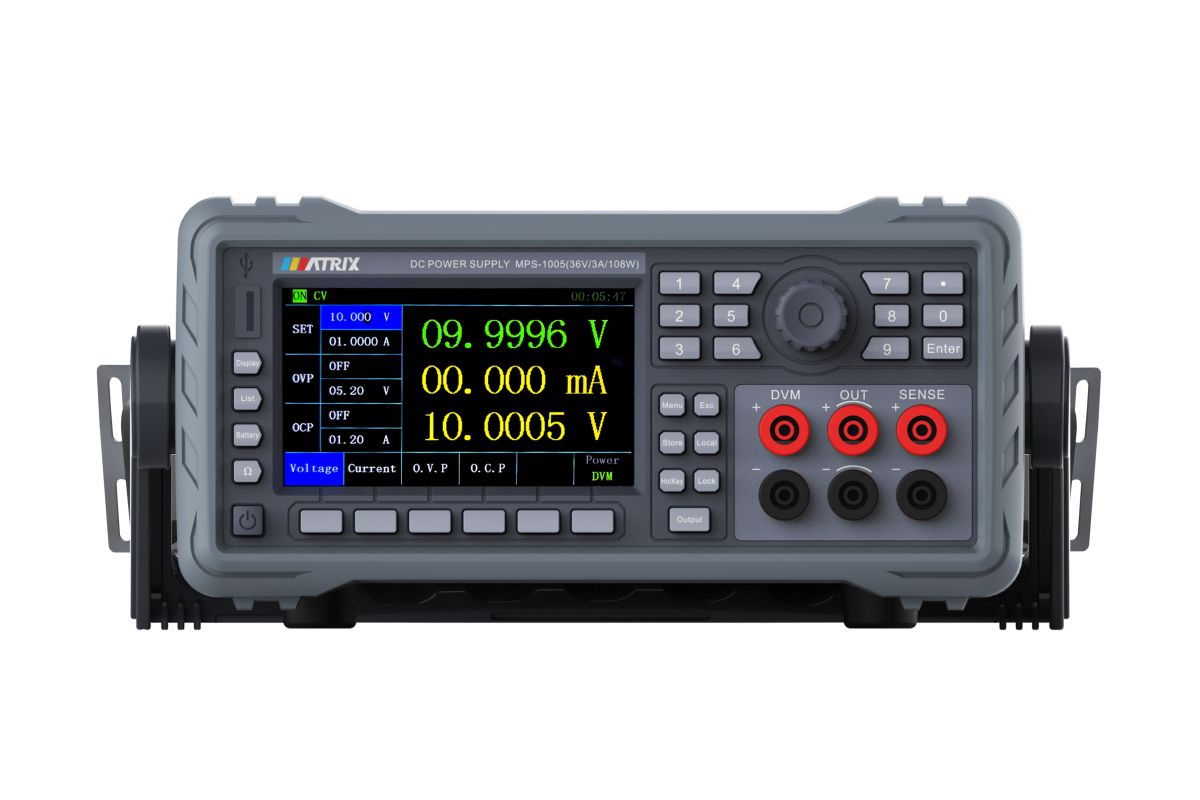

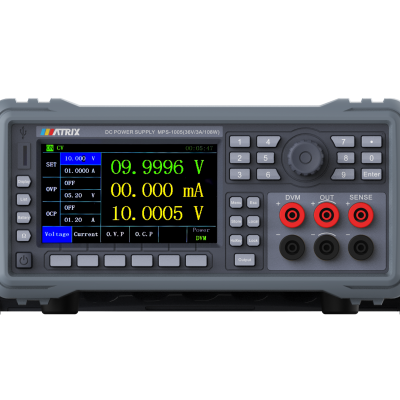

DC Power Supply MPS-1000 Series
MPS-1000 series is a high-precision DC power supply stands out with its exceptional resolution, reaching an impressive 1 microamp, ensuring unparalleled accuracy in various applications.
A key feature is its waveform curve display function, which provides real-time visualization of output waveforms, allowing users to monitor and analyze the power supply’s performance with ease.
Moreover, the power supply offers adjustable rising slope, enabling users to tailor the output characteristics to meet specific requirements of different devices and circuits, enhancing flexibility and adaptability.
With 100 groups of storage capacity, it allows for convenient saving and recall of various operating parameters, eliminating the need for repeated settings and improving work efficiency.
Additionally, the LIST output function enables sequential execution of pre-set output sequences, making it ideal for automated testing, research, and development scenarios where precise and systematic power supply control is essential.
Want a custom configuration?
- Voltage 0.1mV,current 1uA display resolution
- Voltage compensation function ensures high precision
- Two ways to set voltage and current:numeric keypad and knob
- 100 preset storage and memory functions
- DVM voltmeter measurement function
- Waveform curve display function
- List sequence output function
- Battery charging function
- Resistance measurement function
- External USB drive with file saving and reading functions
- The rising slope of the power supply can be set
- Intelligent temperature controlled fan,extremely practical
| Model | MPS-1001 | MPS-1002 | MPS-1003 | MPS-1004 | MPS-1005 | MPS-1006 | |
| Rated output voltage | 0~20V | 0~20V | 0~20V | 0~36V | 0~36V | 0~36V | |
| Rated output current | 0~3A | 0~6A | 0~10A | 0~1A | 0~3A | 0~6A | |
| Rated output power | 60W | 120W | 200W | 36W | 108W | 216W | |
| Load regulation rate |
Voltage | 0.05%+5mV | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+5mV | 0.05%+8mV |
| Current | 0.1%+2mA | 0.1%+2mA | 0.1%+5mA | 0.1%+2mA | 0.1%+2mA | 0.1%+2mA | |
| Line regulation rate |
Voltage | 0.05%+5mV | 0.05%+8mV | 0.05%+10mV | 0.05%+5mV | 0.05%+5mV | 0.05%+8mV |
| Current | 0.1%+2mA | 0.1%+2mA | 0.1%+5mA | 0.1%+2mA | 0.1%+2mA | 0.1%+2mA | |
| Setting resolution |
Voltage | 0.1mV | 0.1mV | 0.1mV | 0.1mV | 0.1mV | 0.1mV |
| Current | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | 0.1mA | |
| Read back resolution |
Voltage | 0.1mV | 0.1mV | 0.1mV | 0.1mV | 0.1mV | 0.1mV |
| Current | 0.1mA/1uA | 0.1mA/1uA | 0.1mA/1uA | 0.1mA/1uA | 0.1mA/1uA | 0.1mA/1uA | |
| Setting accuracy (25℃±5℃) |
Voltage | ≤0.1%+5mV | ≤0.1%+5mV | ≤0.1%+5mV | ≤0.1%+5mV | ≤0.1%+5mV | ≤0.1%+5mV |
| Current | ≤0.2%+1mA | ≤0.2%+1mA | ≤0.2%+1mA | ≤0.2%+1mA | ≤0.2%+1mA | ≤0.2%+1mA | |
| Read back accuracy (25℃±5℃) |
Voltage | ≤0.1%+1mV | ≤0.1%+1mV | ≤0.1%+1mV | ≤0.1%+1mV | ≤0.1%+1mV | ≤0.1%+1mV |
| Current | ≤0.2%+1mA/5uA | ≤0.2%+1mA/5uA | ≤0.2%+1mA/5uA | ≤0.2%+1mA/5uA | ≤0.2%+1mA/5uA | ≤0.2%+1mA/5uA | |
| Ripple and noise (25℃±5℃) |
Voltage | 3mVrms | 3mVrms | 5mVrms | 3mVrms | 3mVrms | 3mVrms |
| Current | 3mArms | 3mArms | 5mArms | 3mArms | 3mArms | 3mArms | |
| Temperature coefficient |
Voltage | 300ppm | 300ppm | 300ppm | 300ppm | 300ppm | 300ppm |
| Current | 300ppm | 300ppm | 300ppm | 300ppm | 300ppm | 300ppm | |
| Machine size (W*H*D) |
mm | 300*195*480 | 300*195*480 | 300*195*480 | 300*195*480 | 300*195*480 | 300*195*480 |
| Packing size (W*H*D) |
mm | 230*110*395 | 230*110*395 | 230*110*395 | 230*110*395 | 230*110*395 | 230*110*395 |
| Net weight | kg | 6.7 | 4.5 | 6.7 | 7.5 | 5.6 | 7 |
| Gross weight | kg | 7.8 | 5.6 | 7.8 | 8.6 | 6.7 | 8 |
