In laboratory calibration, product R&D, and electronic component debugging, a stable, high-precision, and multi-functional DC power supply is an irreplaceable cornerstone. The MPS-1000 Series from MATRIX TECHNOLOGY distinguishes itself through its 0-150V/0-10A wide operating range, 0.1mV/1uA resolution, integrated List/Battery/Resistance test capabilities, and dedicated 3-year warranty for lab/R&D applications. Notably, the 150W linear power variant (MPS-1012) seamlessly integrates the inherent stability of linear power supplies with exceptional performance, emerging as a trusted companion for researchers and engineers alike.
Product Overview

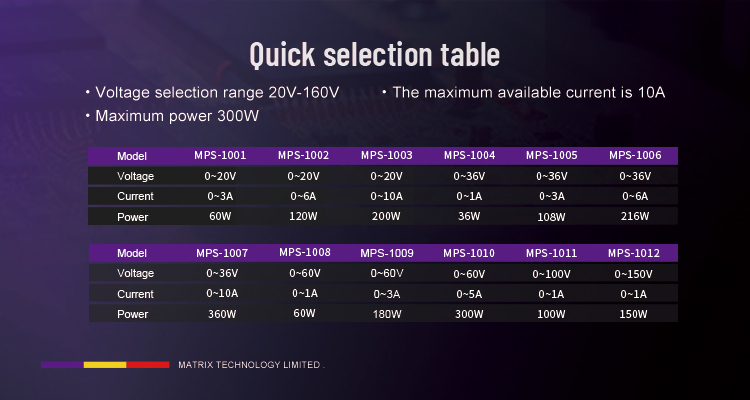

The MPS-1000 Series is a single-channel high-precision programmable linear DC power supply, comprising 12 models (MPS-1001 to MPS-1012) with rated output power spanning 36W to 360W. Its voltage range extends from 0-20V to 0-150V, while the current range covers 0-1A to 0-10A, ensuring compatibility with diverse testing scenarios. All units are subjected to rigorous factory calibration in compliance with Electronic Inspection Center standards, boasting low ripple, low noise, and a bilingual (Chinese/English) operating interface for intuitive deployment across various laboratory and R&D environments.

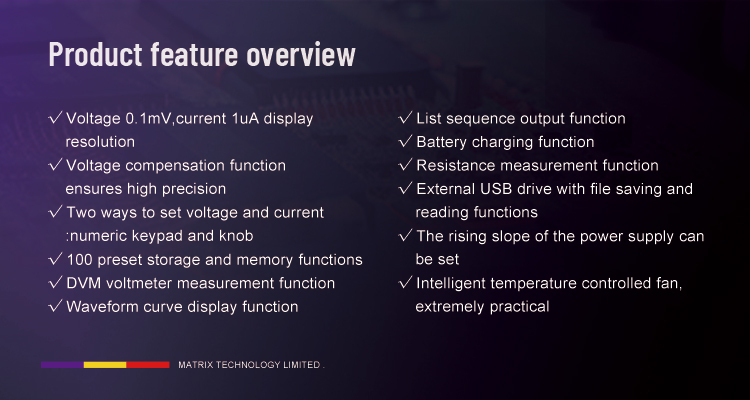

Key Features (Detailed Breakdown)
1. Ultra-High Precision Parameter Control
- Delivers 0.1mV/1uA resolution, with voltage setting and readback accuracy of ≤0.1%+1mV and current accuracy of ≤0.2%+1mA, upholding the integrity of test data.
- Features low load regulation (0.05%+5mV for voltage) and line regulation (0.05%+5mV for voltage), with voltage ripple as low as 3mVrms (for most models), minimizing external interference.
- Voltage rise time <20ms, facilitating customizable voltage and current rise slopes to adapt to dynamic response requirements in specialized testing.
2. Three Integrated Core Functions

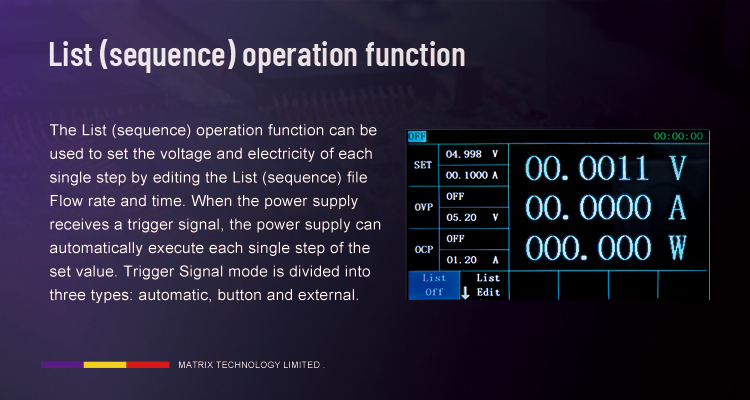

- List Sequence Output: Enables editing of 0-99 steps with configurable voltage, current, and duration parameters. Supports three trigger modes (automatic, key-triggered, external) and up to 99999 cycles (0 for infinite loop), suited for periodic testing scenarios.
- Battery Test Function: Emulates a charger with adjustable standard voltage, standard current, trickle voltage, trickle current, and termination current. Maximum charging time can be set up to 99:59:59, ceasing charging automatically to safeguard batteries during performance testing.

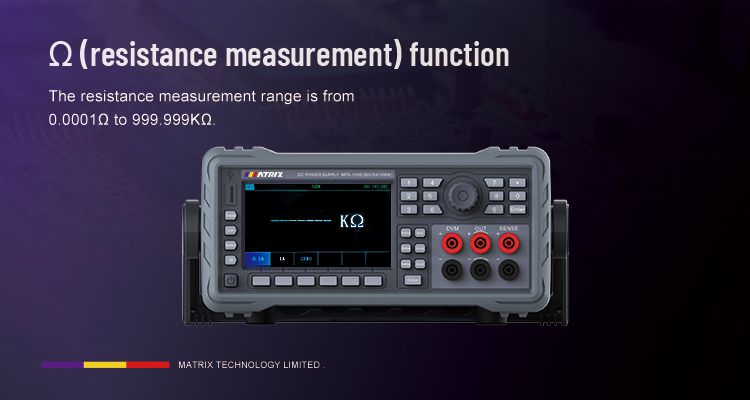

- Resistance Measurement: Covers a range of 0.0001Ω-999.999KΩ with 0.1A/1A dual-range capability (1A recommended for low-resistance applications). Equipped with a zero-clearing function to enhance measurement accuracy.
3. Flexible Operation & Intelligent Design

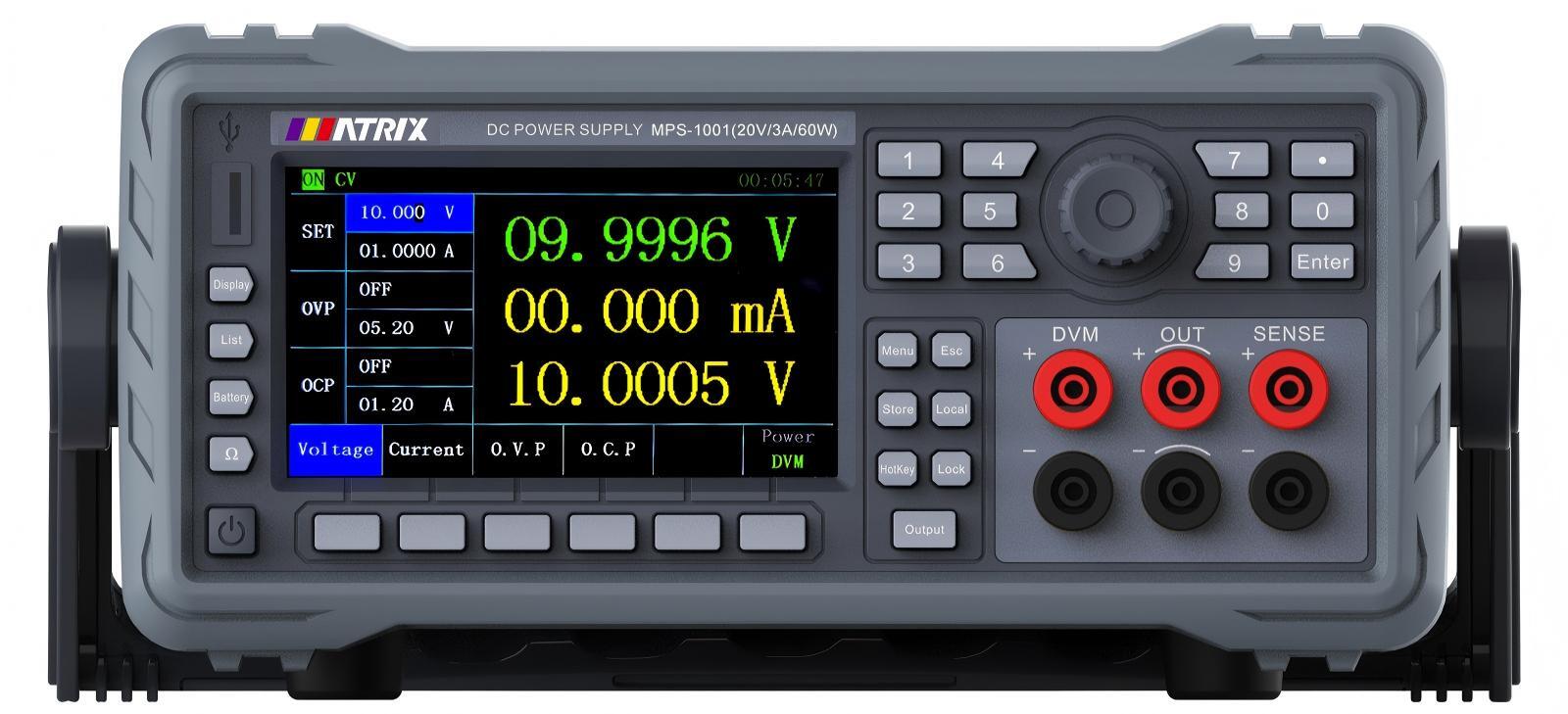

- Dual parameter configuration methods: numeric keypad + multi-function knob. A 4.3-inch high-brightness TFT screen provides real-time visualization of voltage, current, power waveforms, and device status.

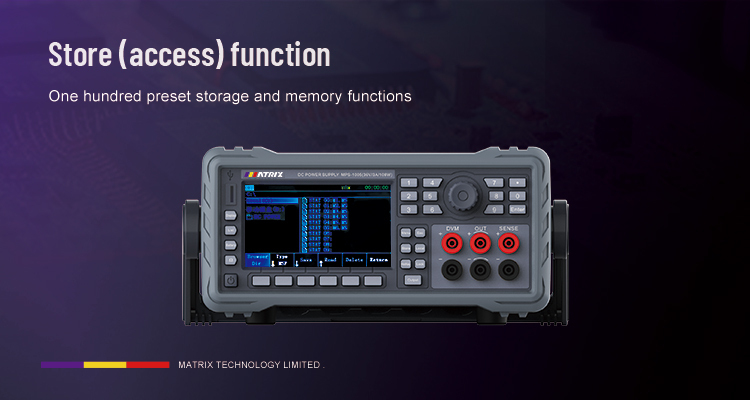

- Built-in 100 groups of preset storage (local disk + external USB drive), supporting MSF/MBF/MTF/CSV file formats for expedited retrieval of frequently used parameters.
- Offers local/remote operation modes. Standard RS-232 interface, with optional USB, RS-485, and LAN ports, compatible with SCPI and MODBUS protocols, enabling the establishment of intelligent test platforms.
- Intelligent temperature-controlled fan adjusts rotational speed based on device temperature, balancing efficient heat dissipation with low-noise operation for laboratory comfort.
4. Comprehensive Safety Protection & Extended Warranty
- Incorporates OVP (Overvoltage), OCP (Overcurrent), and OTP (Overtemperature) protection mechanisms. Automatically cuts off output and triggers an audible alarm when thresholds are exceeded, safeguarding both the power supply and the device under test (DUT).
- Voltage compensation terminals offset test line voltage drop, ensuring accurate voltage delivery at the DUT end. Compliant grounding design adheres to safety standards, mitigating operational risks.
- Provides a 3-year warranty for lab/R&D applications. Free maintenance is offered for non-human-induced damages during the warranty period, with prompt assistance from the official after-sales support team.
5. Wide-Range Adaptability
- Spans a voltage range of 0-150V and a current range of 0-10A, with 150W linear power (MPS-1012) and other power variants available to meet low-to-high power testing demands.

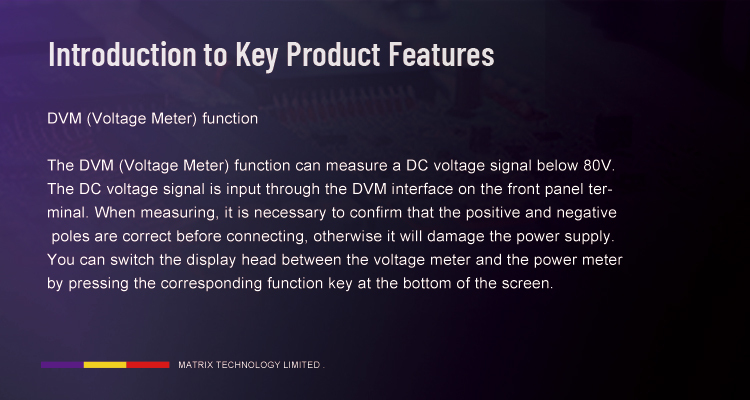

- Integrates a DVM voltmeter (max 80V DC measurement) and resistance measurement capabilities, obviating the requirement for supplementary test equipment and streamlining workflows.
Application Scenarios & Summary
The MPS-1000 Series DC power supply is engineered for laboratory calibration, electronic component testing, battery R&D, and industrial control board debugging. Its high precision, multi-function integration, stable performance, and 3-year warranty position it as a preferred solution for academic laboratories and corporate R&D divisions, enhancing test efficiency and data reliability.
Whether testing small components or debugging medium-to-high power devices, the MPS-1000 Series delivers consistent, reliable performance and hassle-free after-sales support, making it an indispensable asset for rigorous R&D and laboratory operations.
