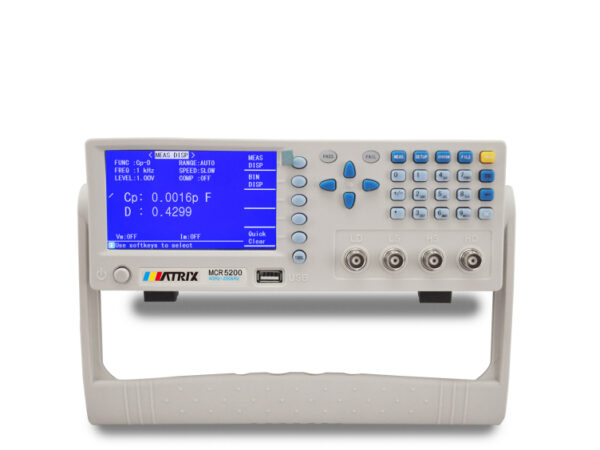

MCR-5000 Series Digital LCR Meter
•Wide test frequency range: 40Hz~200kHz
•Can measure various parameters such as L, C, R, Z, D, Q
•Two different signal source output impedances: 300Ω, 100Ω
•Built-in comparator, 5-level sorting with flexible pass/fail alarm modes
•With open/short/quick zero calibration functions to ensure measurement accuracy -

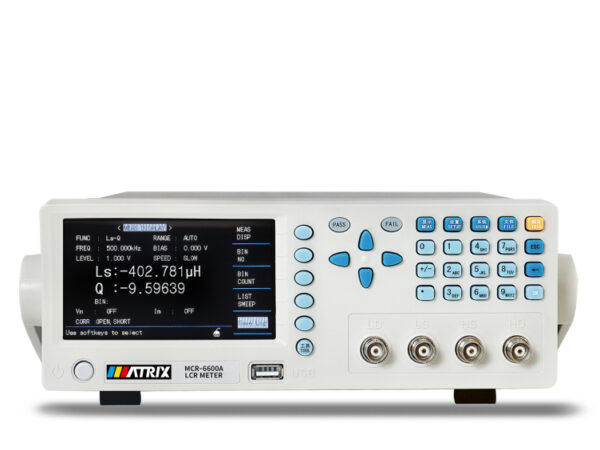

MCR-6000A SERIES LCR METER
•Basic measurement accuracy up to 0.05%, test frequency coverage: 12Hz-600kHz
•Can measure various parameters such as |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
•Supports series/parallel equivalent circuits
•Output impedance supports four options: 30Ω, 50Ω, 100Ω, 10/CC
•Built-in comparator, supporting 11-level sorting
•Standard interfaces: RS232C, HANDLER, USB HOST, USB DEVICE, headphone jack, foot pedal interface -

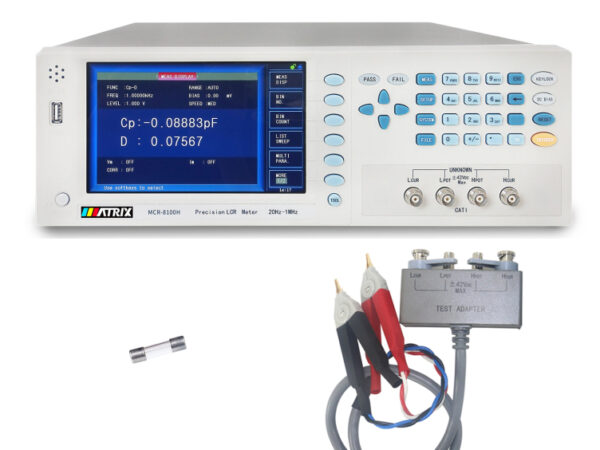

MCR-8000H SERIES LCR METER
•Basic measurement accuracy up to 0.05% (0.1% for DCR testing), test frequency coverage: 20Hz-5MHz
•Can measure various parameters such as |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
•Supports series/parallel equivalent circuits
•Output impedance supports 30Ω, 100Ω, 10/100, 10/CC
•Built-in DC bias: -5V~+5V (-100mA~+100mA)
•Graphic scanning analysis function, supporting frequency/level/bias scanning to insight into the characteristics of the tested device -
MCR-9000 Series High-Frequency LCR Meter
•Test frequency coverage: 10Hz-30MHz
•Minimum frequency resolution: 100mHz, 6-digit frequency input
•Can measure various parameters such as |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR, Vdc-Idc, ESR, μr, εr
•Test signal voltage range: 10mV-2Vrms; current range: 200μA-20mA
•Output impedance: 25Ω/100Ω switchable, with automatic level control (ALC) function
